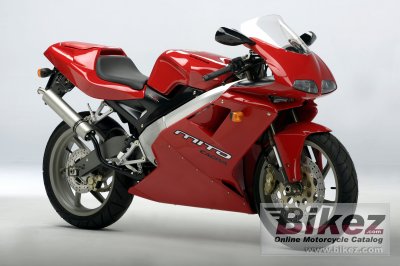

These are the known mechanical and performance specifications for your 2008 Cagiva Mito 125.
Basic Specs
Engine
Displacement124.60 ccm (7.60 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression7.4:1
Bore/Stroke56.0 x 50.6 mm (2.2 x 2.0 inches)
Valves/Cylinder
FuelingCarburettor. Dell’Orto´ PHBH 28 BD
IgnitionC.D.I. with variable spark advance
ExhaustCatalyzed
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet, multiplate type; mechanical release system
Driveline
Performance
Horespower9.00 HP (6.6 kW)
Torque11.00 Nm (1.1 kgf-m or 8.1 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity14.00 litres (3.70 gallons)
Emissions
Chassis
Frame TypeAluminium double extruded beam with cast head pipe and rear plates
Rake
Trail
Front SuspensionMarzocchi upside down telescopic hydraulic fork
Front Travel120 mm (4.7 inches)
Rear SuspensionSachs progressive with hydraulic shock absorbers. Adjustable spring preload
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length1,979 mm (77.9 inches)
Total Width
Ground Clearance175 mm (6.9 inches)
Wheelbase1,374 mm (54.1 inches)
Dry Weight125.0 kg (275.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/70-ZR17
Rear Tire/Tyre150/60-ZR17
Front BrakesSingle disc. Bremo
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Bremo
Rear Brake Diameter230 mm (9.1 inches)
Wheels
Comments
