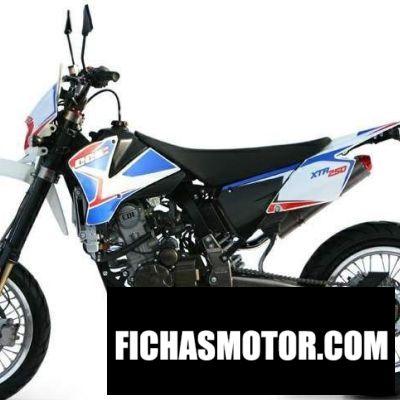

These are the known mechanical and performance specifications for your 2008 CCM X-TR250.
Basic Specs
Engine
Displacement248.00 ccm (15.13 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke70.0 x 64.8 mm (2.8 x 2.6 inches)
Valves/Cylinder2
FuelingCarburettor. Mikuni
IgnitionC.D.I.
Exhaust
LubricationPressure pump feed
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity8.60 litres (2.27 gallons)
Emissions
Chassis
Frame TypeChrome Molly
Rake
Trail
Front SuspensionUsd 41mm adjustable rebound / compression/ preload
Front Travel300 mm (11.8 inches)
Rear SuspensionRebound / compression / preload
Rear Travel300 mm (11.8 inches)
Seat
Seat Height925 mm (36.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance280 mm (11.0 inches)
Wheelbase1,505 mm (59.3 inches)
Dry Weight113.0 kg (249.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
Wheels 17/18´ front, 17/21´ rear.
