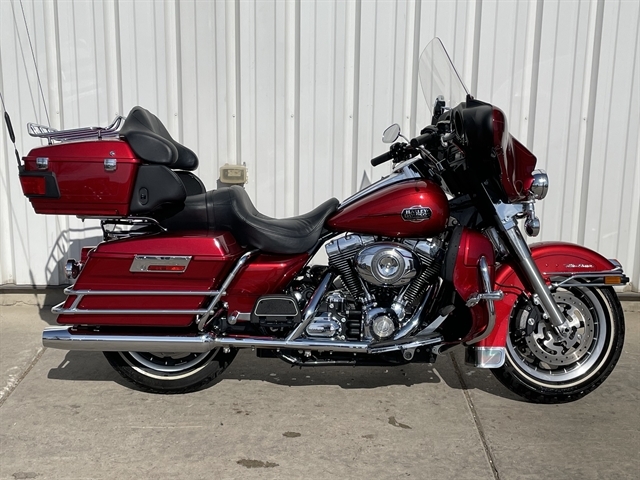

These are the known mechanical and performance specifications for your 2008 Harley-Davidson FLHTCU Ultra Classic Electra Glide Firefighter.
Basic Specs
Year2008
MakeHarley-Davidson
ModelHarley-Davidson FLHTCU Ultra Classic Electra Glide Firefighter
TypeTouring
Cost
Engine
Displacement1573.25 ccm (96.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.3 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI ) Carburetor or Electronic Sequential Port Fuel Injection (ESPFI )
Ignition
ExhaustChrome, touring cross over duals with taper end caps
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline
Performance
Horespower
Torque125.56 Nm (12.8 kgf-m or 92.6 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption4.35 litres/100 km (23.0 km/l or 54.07 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions100.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0°
Trail157 mm (6.2 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,497 mm (98.3 inches)
Total Width
Ground Clearance
Wheelbase
Dry Weight369.2 kg (814.0 pounds)
Wet Weight386.0 kg (851.0 pounds)
Wheels & Brakes
Front Tire/Tyre140/75-R17
Rear Tire/Tyre200/55-R17
Front Brakes
Front Brake Diameter
Rear Brakes
Rear Brake Diameter
Wheels
