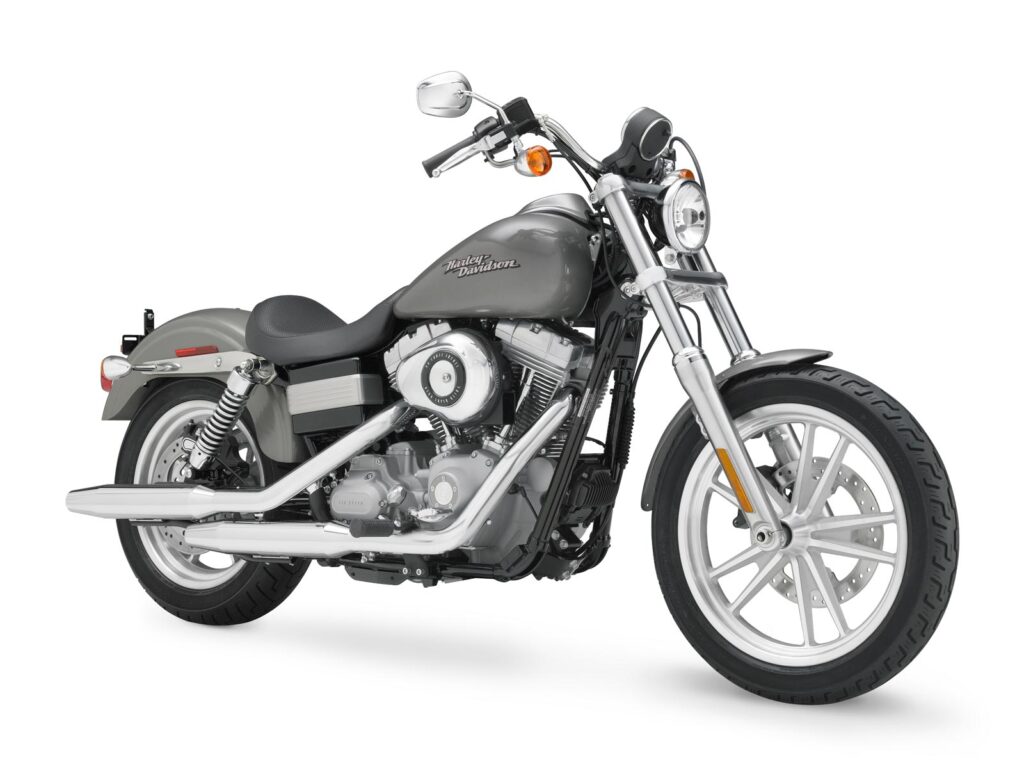

2008 Harley-Davidson FXD Dyna Super Glide Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 Harley-Davidson FXD Dyna Super Glide.

Basic Specs

Year2008
MakeHarley-Davidson
ModelHarley-Davidson FXD Dyna Super Glide
CostUS$ 11995. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1573.25 ccm (96.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.3 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, staggered shorty exhaust w/ dual mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline

Performance

Horespower
Torque124.75 Nm (12.7 kgf-m or 92.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.35 litres/100 km (23.0 km/l or 54.07 mpg)
Fuel Capacity18.16 litres (4.80 gallons)
Emissions100.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake29.0°
Trail114 mm (4.5 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height701 mm (27.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,357 mm (92.8 inches)
Total Width
Ground Clearance135 mm (5.3 inches)
Wheelbase1,631 mm (64.2 inches)
Dry Weight286.7 kg (632.0 pounds)
Wet Weight300.7 kg (663.0 pounds)

Wheels & Brakes

Front Tire/Tyre100/90-H19
Rear Tire/Tyre160/70-B17
Front BrakesSingle disc. 4-piston calipers
Front Brake Diameter
Rear BrakesSingle disc. 2-piston calipers
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FXD Dyna Super Glide. This Custom / cruiser model is powered by a V2, four-stroke engine with 1573.25 ccm (96.00 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its horsepower and 124.75 Nm (12.7 kgf-m or 92.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FXD Dyna Super Glide is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 100/90-H19 and the rear is 160/70-B17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 4-piston calipers front brakes and Single disc. 2-piston calipers rear brakes. The Harley-Davidson FXD Dyna Super Glide was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Silver powder-coated engine and polished covers; solo seat; top-mounted speedometer; nimble handling; open palette for customization
