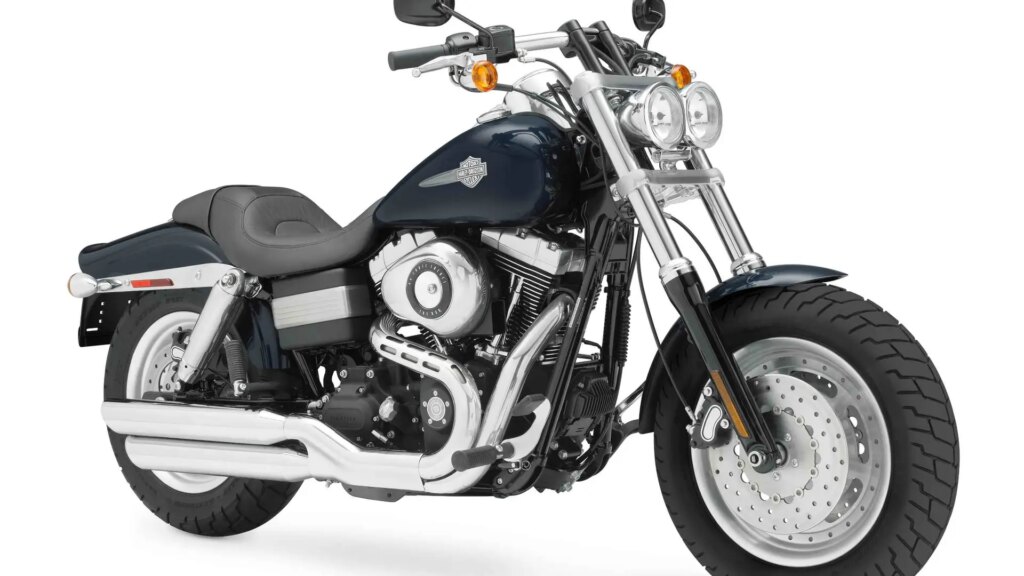

2008 Harley-Davidson FXDF Dyna Fat Bob Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 Harley-Davidson FXDF Dyna Fat Bob.

Basic Specs

Year2008
MakeHarley-Davidson
ModelHarley-Davidson FXDF Dyna Fat Bob
CostUS$ 14795. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1573.25 ccm (96.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.3 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, 2-1-2 collector exhaust w/ dual mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline

Performance

Horespower
Torque123.39 Nm (12.6 kgf-m or 91.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.43 litres/100 km (22.6 km/l or 53.10 mpg)
Fuel Capacity19.30 litres (5.10 gallons)
Emissions102.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake29.0°
Trail114 mm (4.5 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height688 mm (27.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,329 mm (91.7 inches)
Total Width
Ground Clearance124 mm (4.9 inches)
Wheelbase1,621 mm (63.8 inches)
Dry Weight303.8 kg (669.7 pounds)
Wet Weight318.9 kg (703.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/90-B16
Rear Tire/Tyre180/70-B16
Front BrakesSingle disc. 4-piston calipers
Front Brake Diameter
Rear BrakesSingle disc. 2-piston torque-free calipers
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FXDF Dyna Fat Bob. This Custom / cruiser model is powered by a V2, four-stroke engine with 1573.25 ccm (96.00 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its horsepower and 123.39 Nm (12.6 kgf-m or 91.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FXDF Dyna Fat Bob is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/90-B16 and the rear is 180/70-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 4-piston calipers front brakes and Single disc. 2-piston torque-free calipers rear brakes. The Harley-Davidson FXDF Dyna Fat Bob was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Dual headlamps; 130mm front tire; 180mm rear tire; unique tread pattern; full metal jacket rear shocks; FXDWG-style fuel tank; double barrel tommy gun exhaust system.
