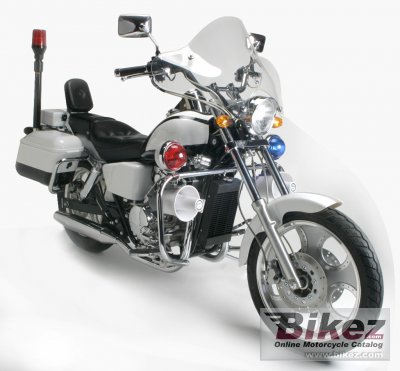

2008 Johnny Pag Police Escort 300 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 Johnny Pag Police Escort 300.

Basic Specs

Year2008
MakeJohnny Pag
ModelJohnny Pag Police Escort 300
CostUS$ 3595. Prices depend on country, taxes, accessories, etc.

Engine

Displacement300.00 ccm (18.31 cubic inches)
Type
DetailsTwo cylinder boxer, four-stroke
Max RPM
Compression10.2:1
Bore/Stroke57.0 x 53.0 mm (2.2 x 2.1 inches)
Valves/Cylinder2
FuelingCarburettor. Dual 26mm Keihin Vacuum Carburetor
IgnitionCDI
Exhaust
LubricationForced Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchMultiplate oil bath
Driveline

Performance

Horespower23.80 HP (17.4 kW)
Torque18.50 Nm (1.9 kgf-m or 13.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption3.61 litres/100 km (27.7 km/l or 65.16 mpg)
Fuel Capacity15.89 litres (4.20 gallons)
Emissions83.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake36.0°
Trail
Front Suspension37 mm forks
Front Travel
Rear SuspensionDual shocks (fully-adjustable)
Rear Travel
Seat
Seat Height660 mm (26.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance152 mm (6.0 inches)
Wheelbase1,575 mm (62.0 inches)
Dry Weight
Wet Weight163.3 kg (360.0 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-18
Rear Tire/Tyre130/90-15
Front BrakesDouble disc. Twin-piston calipers
Front Brake Diameter
Rear BrakesSingle disc. Twin-piston calipers
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Johnny Pag Police Escort 300. This Touring model is powered by a Two cylinder boxer, four-stroke engine with 300.00 ccm (18.31 cubic inches) of actual displacement before 10.2:1 compression. Fueling is metered via Carburettor. Dual 26mm Keihin Vacuum Carburetor allowing this machine to produce its 23.80 HP (17.4 kW) horsepower and 18.50 Nm (1.9 kgf-m or 13.6 ft.lbs) torque. According to our records engine heat of the Johnny Pag Police Escort 300 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-18 and the rear is 130/90-15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Twin-piston calipers front brakes and Single disc. Twin-piston calipers rear brakes. The Johnny Pag Police Escort 300 was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
