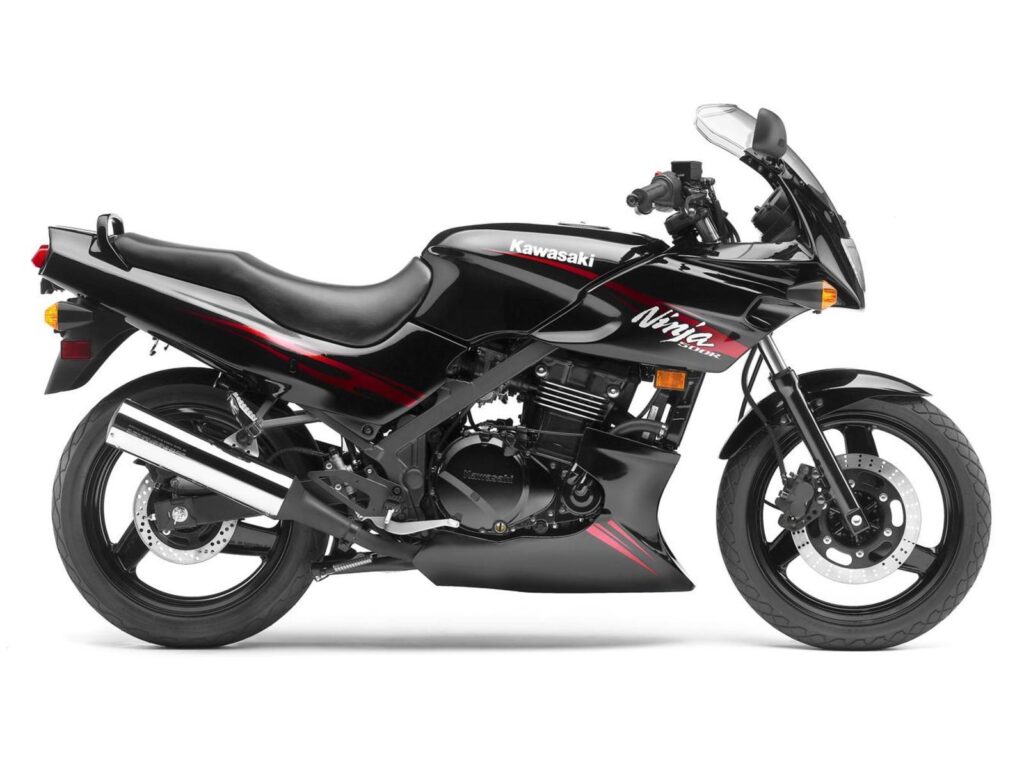

2008 Kawasaki Ninja 500R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 Kawasaki Ninja 500R.

Basic Specs

Year2008
MakeKawasaki
ModelKawasaki Ninja 500R
TypeSport
CostUS$ 5099. Prices depend on country, taxes, accessories, etc.

Engine

Displacement498.00 ccm (30.39 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke74.0 x 58.0 mm (2.9 x 2.3 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin CVK34 x 2
IgnitionTCBI with digital advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque48.50 Nm (4.9 kgf-m or 35.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.16 litres (4.80 gallons)
Emissions

Chassis

Frame TypeHigh-tensile steel, perimeter design
Rake27.0°
Trail91 mm (3.6 inches)
Front Suspension37mm hydraulic telescopic fork / 5.1 in.
Front Travel
Rear SuspensionUNI-TRAK® system with single shock / 3.9 in.
Rear Travel
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,161 mm (45.7 inches)
Total Length2,096 mm (82.5 inches)
Total Width701 mm (27.6 inches)
Ground Clearance119 mm (4.7 inches)
Wheelbase1,435 mm (56.5 inches)
Dry Weight176.0 kg (388.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/70-17
Rear Tire/Tyre130/70-x17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Ninja 500R. This Sport model is powered by a In-line four, four-stroke engine with 498.00 ccm (30.39 cubic inches) of actual displacement before 10.8:1 compression. Fueling is metered via Carburettor. Keihin CVK34 x 2 allowing this machine to produce its horsepower and 48.50 Nm (4.9 kgf-m or 35.8 ft.lbs) torque. According to our records engine heat of the Kawasaki Ninja 500R is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/70-17 and the rear is 130/70-x17 . The entire package is supported by the frame, High-tensile steel, perimeter design. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Kawasaki Ninja 500R was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
