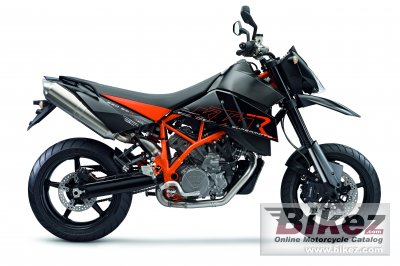

2008 KTM 950 Supermoto R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 KTM 950 Supermoto R.

Basic Specs

Year2008
MakeKTM
ModelKTM 950 Supermoto R
Cost

Engine

Displacement942.00 ccm (57.48 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke100.0 x 60.0 mm (3.9 x 2.4 inches)
Valves/Cylinder
FuelingCarburettor
Ignition2 X keihin
ExhaustTwin stainless-stell silencer with catalytic converter
LubricationForced oil lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchMulti-disc wet clutch, hydraulically operated
Driveline

Performance

Horespower96.55 HP (70.5 kW)
Torque94.00 Nm (9.6 kgf-m or 69.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.50 litres (3.83 gallons)
Emissions

Chassis

Frame TypeTubular chrome-moly space frame, powder-coated
Rake25.4°
Trail110 mm (4.3 inches)
Front SuspensionWP USD
Front Travel200 mm (7.9 inches)
Rear SuspensionWP-Monoshock
Rear Travel210 mm (8.3 inches)
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance190 mm (7.5 inches)
Wheelbase1,510 mm (59.4 inches)
Dry Weight191.0 kg (421.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre70/17-18
Front BrakesDouble disc
Front Brake Diameter305 mm (12.0 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM 950 Supermoto R. This Super motard model is powered by a V2, four-stroke engine with 942.00 ccm (57.48 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 96.55 HP (70.5 kW) horsepower and 94.00 Nm (9.6 kgf-m or 69.3 ft.lbs) torque. According to our records engine heat of the KTM 950 Supermoto R is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 70/17-18 . The entire package is supported by the frame, Tubular chrome-moly space frame, powder-coated. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The KTM 950 Supermoto R was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
