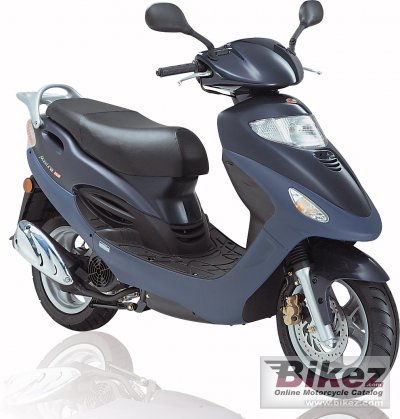

2008 Kymco Movie XL 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 Kymco Movie XL 125.

Basic Specs

Year2008
MakeKymco
ModelKymco Movie XL 125
Cost

Engine

Displacement124.60 ccm (7.60 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke52.4 x 57.8 mm (2.1 x 2.3 inches)
Valves/Cylinder
Fueling
IgnitionCDI
Exhaust
Lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
Driveline

Performance

Horespower9.80 HP (7.2 kW)
Torque9.80 Nm (1.0 kgf-m or 7.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.50 litres (1.98 gallons)
Emissions

Chassis

Frame TypePine under bone
Rake
Trail
Front SuspensionTelescopic fork
Front Travel80 mm (3.1 inches)
Rear SuspensionUnit swing
Rear Travel95 mm (3.7 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,150 mm (45.3 inches)
Total Length1,885 mm (74.2 inches)
Total Width695 mm (27.4 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase1,280 mm (50.4 inches)
Dry Weight110.0 kg (242.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-12
Rear Tire/Tyre130/70-12
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Kymco Movie XL 125. This Scooter model is powered by a Single cylinder, four-stroke engine with 124.60 ccm (7.60 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via allowing this machine to produce its 9.80 HP (7.2 kW) horsepower and 9.80 Nm (1.0 kgf-m or 7.2 ft.lbs) torque. According to our records engine heat of the Kymco Movie XL 125 is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-12 and the rear is 130/70-12 . The entire package is supported by the frame, Pine under bone. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Kymco Movie XL 125 was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
