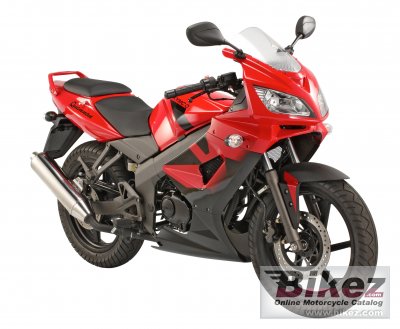

These are the known mechanical and performance specifications for your 2008 Kymco Quannon 125.
Basic Specs
Engine
Displacement124.10 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke56.5 x 49.5 mm (2.2 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionCDI
Exhaust
Lubrication
CoolingOil & air
Performance
Horespower12.87 HP (9.4 kW)
Torque9.80 Nm (1.0 kgf-m or 7.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.00 litres (3.96 gallons)
Emissions
Chassis
Frame TypeTube Box
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionSingle swing
Rear Travel
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,174 mm (46.2 inches)
Total Length2,057 mm (81.0 inches)
Total Width725 mm (28.5 inches)
Ground Clearance170 mm (6.7 inches)
Wheelbase1,355 mm (53.3 inches)
Dry Weight137.0 kg (302.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/80-17
Rear Tire/Tyre140/70-17
Front BrakesSingle disc
Front Brake Diameter276 mm (10.9 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
Kymco is an abbreviation of Kwang Yang Motor Company in Taiwan.
