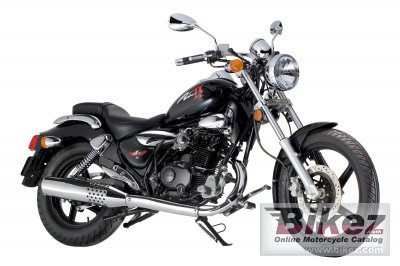

2008 Kymco Zing II 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 Kymco Zing II 125.

Basic Specs

Year2008
MakeKymco
ModelKymco Zing II 125
Cost

Engine

Displacement124.10 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke56.5 x 49.5 mm (2.2 x 1.9 inches)
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet plate
Driveline

Performance

Horespower11.53 HP (8.4 kW)
Torque9.30 Nm (0.9 kgf-m or 6.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.00 litres (3.70 gallons)
Emissions

Chassis

Frame TypeTube Box
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionDouble swing
Rear Travel
Seat
Seat Height680 mm (26.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,195 mm (86.4 inches)
Total Width820 mm (32.3 inches)
Ground Clearance152 mm (6.0 inches)
Wheelbase1,450 mm (57.1 inches)
Dry Weight152.0 kg (335.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre3.00-18
Rear Tire/Tyre130/90-15
Front BrakesSingle disc
Front Brake Diameter276 mm (10.9 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter140 mm (5.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Kymco Zing II 125. This Custom / cruiser model is powered by a Single cylinder, four-stroke engine with 124.10 ccm (7.57 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via allowing this machine to produce its 11.53 HP (8.4 kW) horsepower and 9.30 Nm (0.9 kgf-m or 6.9 ft.lbs) torque. According to our records engine heat of the Kymco Zing II 125 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 3.00-18 and the rear is 130/90-15 . The entire package is supported by the frame, Tube Box. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Kymco Zing II 125 was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Kymco is an abbreviation of Kwang Yang Motor Company in Taiwan.
