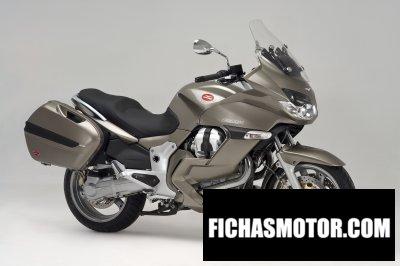

These are the known mechanical and performance specifications for your 2008 Moto Guzzi Norge 1200 TL.
Basic Specs
Engine
Displacement1151.00 ccm (70.23 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke95.0 x 81.2 mm (3.7 x 3.2 inches)
Valves/Cylinder
FuelingInjection. Weber-Marelli electronic fuel injection with stepper motor control
IgnitionMagneti Marelli IAW5A, ¥á-n type; 2 ¨ª 45 mm throttle bodies, Weber IWP 162 injectors, Lambda control, twin spark ignition
ExhaustStainless steel, 2 into 1 type with catalytic converter, height-adjustable muffler
LubricationSplash
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchDry
Driveline
Performance
Horespower88.50 HP (64.6 kW)
Torque100.00 Nm (10.2 kgf-m or 73.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity23.00 litres (6.08 gallons)
Emissions
Chassis
Frame TypeTubular cradle, high tensile steel
Rake25.0°
Trail120 mm (4.7 inches)
Front SuspensionTelescopic hydraulic fork with ¨ª 45 mm, preload adjustable
Front Travel110 mm (4.3 inches)
Rear SuspensionSingle arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic)
Rear Travel110 mm (4.3 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,125 mm (44.3 inches)
Total Length2,195 mm (86.4 inches)
Total Width870 mm (34.3 inches)
Ground Clearance185 mm (7.3 inches)
Wheelbase1,495 mm (58.9 inches)
Dry Weight246.0 kg (542.3 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter282 mm (11.1 inches)
Wheels
Comments
