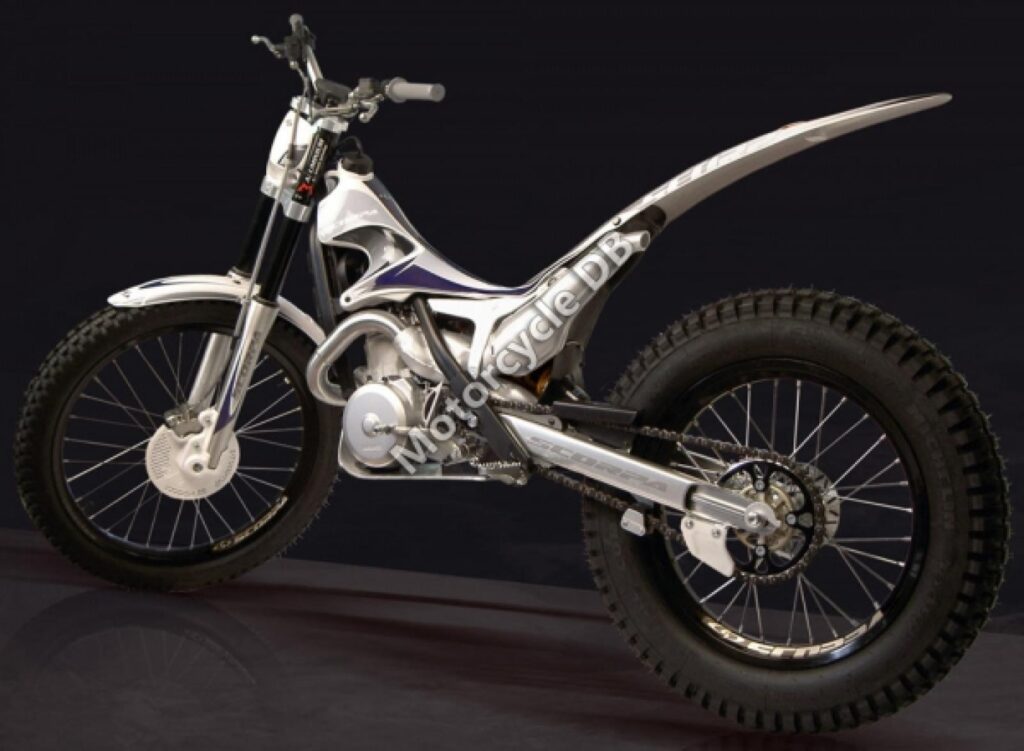

These are the known mechanical and performance specifications for your 2008 Scorpa SY-125FR.
Basic Specs
Engine
Displacement123.00 ccm (7.51 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke54.0 x 54.0 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionComputer-controlled Digital Ignition
Exhaust
Lubrication
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveChain
ClutchWet multidisc, with hydraulic command
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity2.60 litres (0.69 gallons)
Emissions
Chassis
Frame TypePerimetric, 25CD4S Steel
Rake
Trail
Front SuspensionPAIOLI 38 mm hydraulic fork, adjustable compression and rebond damping, 170 mm axle travel
Front Travel
Rear SuspensionSACHS adjustable hydraulic single damper, 165 mm wheel travel
Rear Travel
Seat
Seat Height699 mm (27.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,050 mm (80.7 inches)
Total Width
Ground Clearance295 mm (11.6 inches)
Wheelbase1,345 mm (53.0 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter182 mm (7.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter150 mm (5.9 inches)
Wheels
