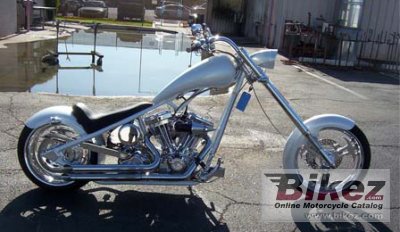

2008 Titan Radical Rigid Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 Titan Radical Rigid.

Basic Specs

Year2008
MakeTitan
ModelTitan Radical Rigid
Cost

Engine

Displacement1750.00 ccm (106.79 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke101.6 x 113.0 mm (4.0 x 4.5 inches)
Valves/Cylinder2
FuelingCarburettor. S and S serie G
Ignition
ExhaustTitan Custom Show Pipes
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchTitan performance clutch
Driveline

Performance

Horespower112.00 HP (81.8 kW)
Torque121.00 Nm (12.3 kgf-m or 89.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption8.40 litres/100 km (11.9 km/l or 28.00 mpg)
Fuel Capacity17.41 litres (4.60 gallons)
Emissions194.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake37.0°
Trail
Front SuspensionInverted 54 mm forks with Titan billet tripple trees
Front Travel
Rear SuspensionDual chromed agusta shocks
Rear Travel
Seat
Seat Height559 mm (22.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance89 mm (3.5 inches)
Wheelbase2,007 mm (79.0 inches)
Dry Weight299.4 kg (660.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/90-21
Rear Tire/Tyre280/35-18
Front BrakesSingle disc. 6-piston calipers. Polished rotor.
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. 4-piston calipers. Polished stainless rotor
Rear Brake Diameter292 mm (11.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Titan Radical Rigid. This Custom / cruiser model is powered by a V2, four-stroke engine with 1750.00 ccm (106.79 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. S and S serie G allowing this machine to produce its 112.00 HP (81.8 kW) horsepower and 121.00 Nm (12.3 kgf-m or 89.2 ft.lbs) torque. According to our records engine heat of the Titan Radical Rigid is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/90-21 and the rear is 280/35-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 6-piston calipers. Polished rotor. front brakes and Single disc. 4-piston calipers. Polished stainless rotor rear brakes. The Titan Radical Rigid was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

A 124 cinch. engine upgrade is available.
