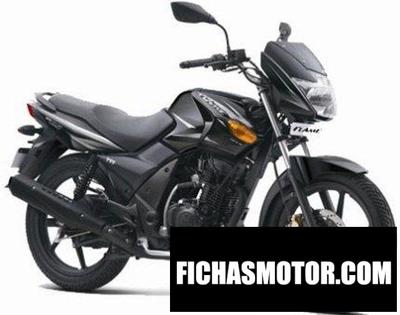

2008 TVS Flame 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 TVS Flame 125.

Basic Specs

Year2008
MakeTVS
ModelTVS Flame 125
Cost

Engine

Displacement124.80 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke54.5 x 53.5 mm (2.1 x 2.1 inches)
Valves/Cylinder3
FuelingCarburettor. VM type
Ignition
Exhaust
Lubrication
Cooling

Drivetrain

Gearbox
Final Drive
Clutch
Driveline

Performance

Horespower10.32 HP (7.5 kW)
Torque10.00 Nm (1.0 kgf-m or 7.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.50 litres (1.98 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic hydraulic fork
Front Travel
Rear SuspensionTwin tube 5 step adjustable gas filled.
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height1,070 mm (42.1 inches)
Total Length2,030 mm (79.9 inches)
Total Width
Ground Clearance165 mm (6.5 inches)
Wheelbase1,320 mm (52.0 inches)
Dry Weight
Wet Weight123.0 kg (271.2 pounds)

Wheels & Brakes

Front Tire/Tyre2.75-18
Rear Tire/Tyre3.00-18
Front BrakesExpanding brake (drum brake). Disc optional
Front Brake Diameter130 mm (5.1 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels

Comments

It appears you're interested in specifications for the TVS Flame 125. This Allround model is powered by a Single cylinder, four-stroke engine with 124.80 ccm (7.62 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Carburettor. VM type allowing this machine to produce its 10.32 HP (7.5 kW) horsepower and 10.00 Nm (1.0 kgf-m or 7.4 ft.lbs) torque. According to our records engine heat of the TVS Flame 125 is moderated by . You'll need to get familiar with the transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 2.75-18 and the rear is 3.00-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake). Disc optional front brakes and Expanding brake (drum brake) rear brakes. The TVS Flame 125 was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
