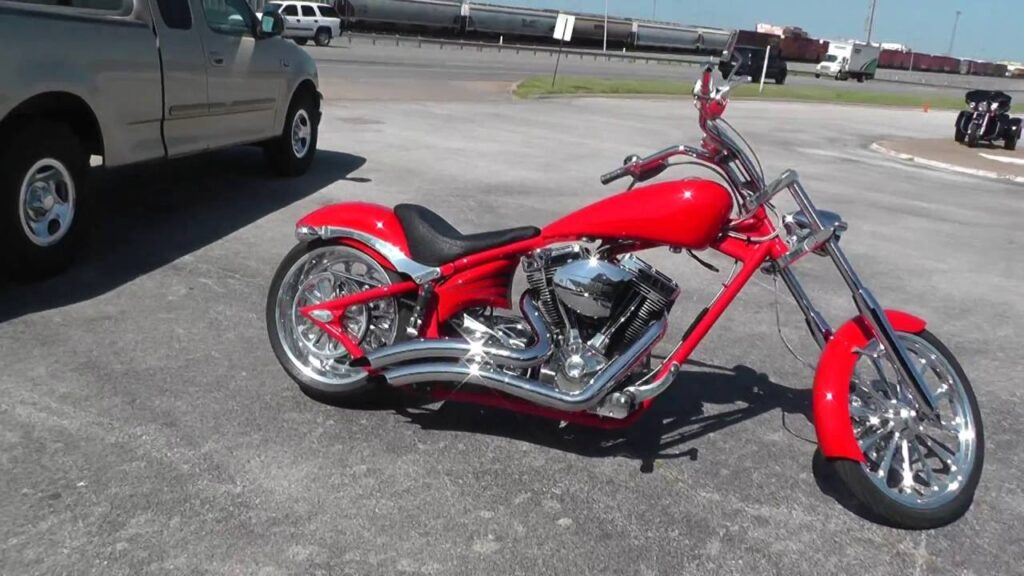

These are the known mechanical and performance specifications for your 2009 Big Dog Coyote.
Basic Specs
Year2009
MakeBig Dog
ModelBig Dog Coyote
TypeCustom / cruiser
CostUS$ 23900. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1917.00 ccm (116.98 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke104.8 x 111.1 mm (4.1 x 4.4 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
Cooling
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.78 litres (4.70 gallons)
Emissions
Chassis
Frame TypeSteel
Rake39.0°
Trail122 mm (4.8 inches)
Front SuspensionTelescopic
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height622 mm (24.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,604 mm (102.5 inches)
Total Width
Ground Clearance114 mm (4.5 inches)
Wheelbase1,969 mm (77.5 inches)
Dry Weight321.1 kg (708.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-21
Rear Tire/Tyre300/35-18
Front BrakesSingle disc. 4-piston diff bore
Front Brake Diameter
Rear BrakesSingle disc. 4-piston
Rear Brake Diameter
Wheels
