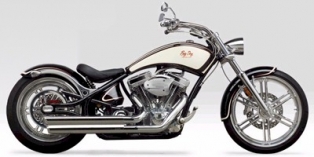

These are the known mechanical and performance specifications for your 2009 Big Dog Pitbull.
Basic Specs
Year2009
MakeBig Dog
ModelBig Dog Pitbull
TypeCustom / cruiser
CostUS$ 26900. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1916.00 ccm (116.91 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke
Valves/Cylinder
FuelingCarburettor
IgnitionElectronic Single Fire
Exhaust
Lubrication
Cooling
Chassis
Frame Type
Rake33.0°
Trail114 mm (4.5 inches)
Front Suspension41mm Telescopic
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height648 mm (25.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,591 mm (102.0 inches)
Total Width
Ground Clearance121 mm (4.8 inches)
Wheelbase1,854 mm (73.0 inches)
Dry Weight307.5 kg (678.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/60-R23
Rear Tire/Tyre280/40-R20
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
