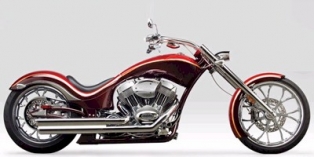

These are the known mechanical and performance specifications for your 2009 Big Dog Wolf.
Basic Specs
Year2009
MakeBig Dog
ModelBig Dog Wolf
TypeCustom / cruiser
CostUS$ 35900. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1976.00 ccm (120.58 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.9:1
Bore/Stroke108.0 x 108.0 mm (4.3 x 4.3 inches)
Valves/Cylinder
FuelingInjection. EFI
Ignition
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions
Chassis
Frame TypeSteel
Rake40.0°
Trail148 mm (5.8 inches)
Front Suspension41 mm Telescopic Sleeved
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height622 mm (24.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,604 mm (102.5 inches)
Total Width
Ground Clearance114 mm (4.5 inches)
Wheelbase1,969 mm (77.5 inches)
Dry Weight349.0 kg (769.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/760-R23
Rear Tire/Tyre220/50-R20
Front BrakesSingle disc. 4-piston diff bore
Front Brake Diameter
Rear BrakesSingle disc. 4-piston drive side
Rear Brake Diameter
Wheels
Comments
X-Wedge engine
