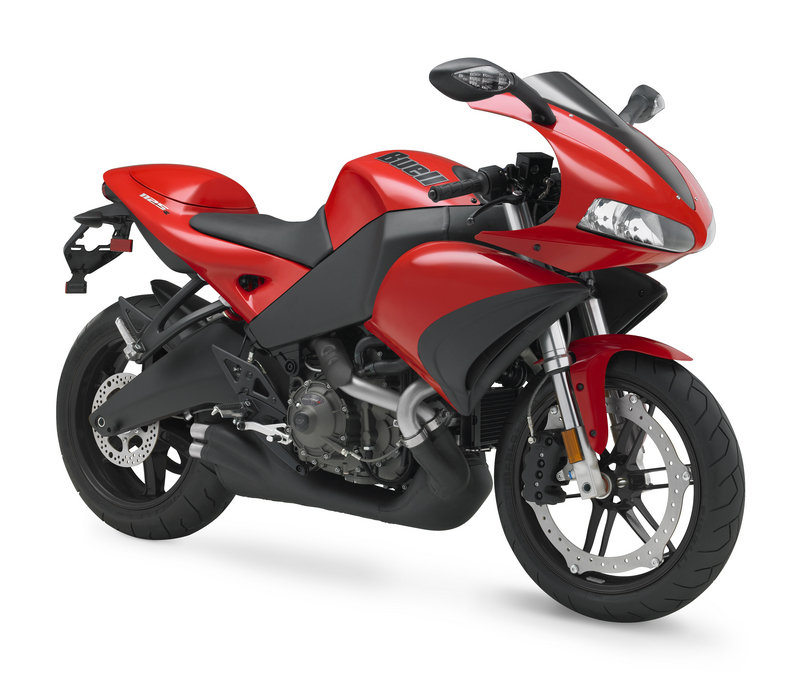

These are the known mechanical and performance specifications for your 2009 Buell 1125R.
Basic Specs
Year2009
MakeBuell
ModelBuell 1125R
TypeSport
CostUS$ 11995. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1125.86 ccm (68.70 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression12.3:1
Bore/Stroke103.0 x 67.5 mm (4.1 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. Dual 61 mm down draft throttle bodies, DDFI III fuel injection
Ignition
ExhaustTuned, tri-pass resonance chamber with integral helmholtz tuning and mass-centralised mounting
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchWet, multi-plate, Hydraulic Vacuum Assist (HVA) slipper – action clutch, hydraulic clutch lever effort
Driveline
Performance
Horespower146.00 HP (106.6 kW)
Torque111.19 Nm (11.3 kgf-m or 82.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity20.06 litres (5.30 gallons)
Emissions
Chassis
Frame TypeBlack aluminium frame, fuel in frame
Rake21.0°
Trail
Front Suspension47 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload
Front Travel120 mm (4.7 inches)
Rear SuspensionShowa coil-over monoshock with external piggyback reservoir and adjustable compression damping, rebound damping and spring preload
Rear Travel127 mm (5.0 inches)
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length1,996 mm (78.6 inches)
Total Width716 mm (28.2 inches)
Ground Clearance114 mm (4.5 inches)
Wheelbase1,387 mm (54.6 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesSingle disc. ZTL2-type brake, 8-piston, 4 pads, fixed caliper, single-sided, inside out, stainless steel, floating rotor
Front Brake Diameter375 mm (14.8 inches)
Rear BrakesSingle disc. Two-piston, direct mount caliper; stainless steel, fixed rotor
Rear Brake Diameter240 mm (9.4 inches)
Wheels
Comments
