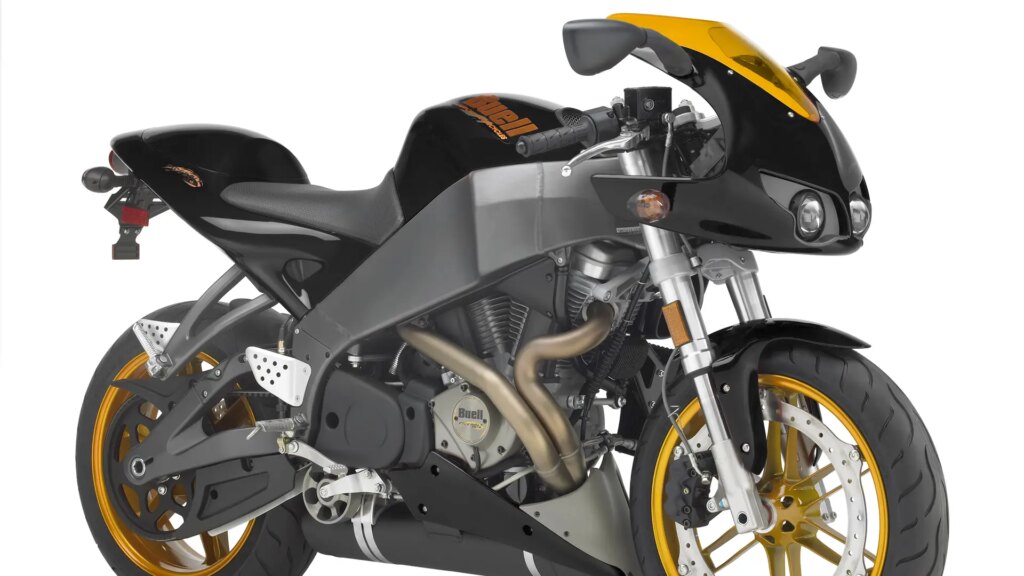

2009 Buell Firebolt XB12R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Buell Firebolt XB12R.

Basic Specs

Year2009
MakeBuell
ModelBuell Firebolt XB12R
CostUS$ 9995. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1202.88 ccm (73.40 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves/Cylinder2
FuelingInjection. 49 mm down draft DDFI III fuel injection
Ignition
ExhaustTuned, tri-pass resonance chamber with InterActive valve and mass-centralized mounting
Lubrication
CoolingOil & air

Drivetrain

Gearbox5-speed
Final DriveBelt
ClutchWet, multi-plate, compensated
Driveline

Performance

Horespower103.00 HP (75.2 kW)
Torque113.90 Nm (11.6 kgf-m or 84.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.12 litres/100 km (24.3 km/l or 57.09 mpg)
Fuel Capacity14.45 litres (3.82 gallons)
Emissions95.6 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeAluminum frame with Uniplanar™ powertrain vibration isolation system, fuel in frame
Rake21.0°
Trail
Front Suspension43 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload
Front Travel120 mm (4.7 inches)
Rear SuspensionShowa coil-over monoshock with remote, under-seat reservoir and adjustable compression damping, rebound damping and spring preload
Rear Travel127 mm (5.0 inches)
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length1,935 mm (76.2 inches)
Total Width714 mm (28.1 inches)
Ground Clearance110 mm (4.4 inches)
Wheelbase1,321 mm (52.0 inches)
Dry Weight
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesSingle disc. ZTL2-type brake, 8-piston, 4 pads, fixed caliper, single-sided, inside out, stainless steel, floating rotor
Front Brake Diameter
Rear BrakesSingle disc. Two-piston, direct mount caliper; stainless steel, fixed rotor
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Buell Firebolt XB12R. This Naked bike model is powered by a V2, four-stroke engine with 1202.88 ccm (73.40 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. 49 mm down draft DDFI III fuel injection allowing this machine to produce its 103.00 HP (75.2 kW) horsepower and 113.90 Nm (11.6 kgf-m or 84.0 ft.lbs) torque. According to our records engine heat of the Buell Firebolt XB12R is moderated by Oil & air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Aluminum frame with Uniplanar™ powertrain vibration isolation system, fuel in frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ZTL2-type brake, 8-piston, 4 pads, fixed caliper, single-sided, inside out, stainless steel, floating rotor front brakes and Single disc. Two-piston, direct mount caliper; stainless steel, fixed rotor rear brakes. The Buell Firebolt XB12R was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
