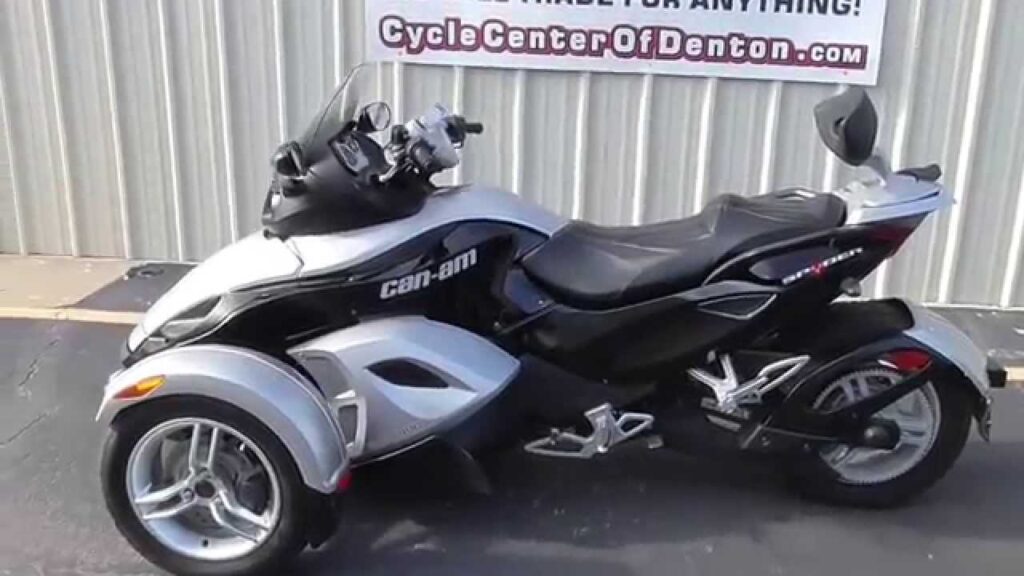

2009 Can-Am Spyder Roadster SM5 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Can-Am Spyder Roadster SM5.

Basic Specs

Year2009
MakeCan-Am
ModelCan-Am Spyder Roadster SM5
TypeSport
CostUS$ 16199. Prices depend on country, taxes, accessories, etc.

Engine

Displacement998.00 ccm (60.90 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke97.0 x 68.0 mm (3.8 x 2.7 inches)
Valves/Cylinder
FuelingInjection. Multi-point EFI with 57 mm diameter throttle bodies
IgnitionElectronic ignition with dual output coil
Exhaust2-into-1 with catalytic converter
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveBelt
ClutchWet, multi-plate
Driveline

Performance

Horespower106.00 HP (77.4 kW)
Torque104.30 Nm (10.6 kgf-m or 76.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity25.00 litres (6.61 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionIndependent double A-arm
Front Travel145 mm (5.7 inches)
Rear SuspensionSwing Arm with monoshock
Rear Travel145 mm (5.7 inches)
Seat
Seat Height737 mm (29.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,146 mm (45.1 inches)
Total Length2,667 mm (105.0 inches)
Total Width1,506 mm (59.3 inches)
Ground Clearance114 mm (4.5 inches)
Wheelbase1,727 mm (68.0 inches)
Dry Weight316.2 kg (697.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre165/65-R14
Rear Tire/Tyre225/50-R15
Front BrakesDouble disc. EBD, ABS
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. EBD, ABS
Rear Brake Diameter260 mm (10.2 inches)
Wheels

Comments

It appears you're interested in specifications for the Can-Am Spyder Roadster SM5. This Sport model is powered by a V2, four-stroke engine with 998.00 ccm (60.90 cubic inches) of actual displacement before 10.8:1 compression. Fueling is metered via Injection. Multi-point EFI with 57 mm diameter throttle bodies allowing this machine to produce its 106.00 HP (77.4 kW) horsepower and 104.30 Nm (10.6 kgf-m or 76.9 ft.lbs) torque. According to our records engine heat of the Can-Am Spyder Roadster SM5 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 165/65-R14 and the rear is 225/50-R15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. EBD, ABS front brakes and Single disc. EBD, ABS rear brakes. The Can-Am Spyder Roadster SM5 was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Three wheel motorcycle.
