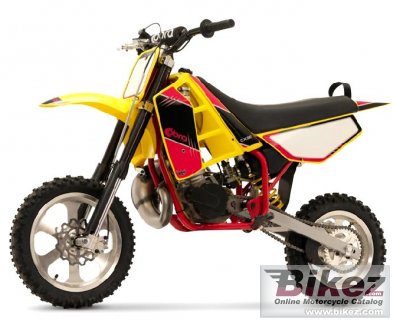

These are the known mechanical and performance specifications for your 2009 Cobra CX50 Jr.
Basic Specs
Year2009
MakeCobra
ModelCobra CX50 Jr
TypeMinibike, cross
CostUS$ 3798. Prices depend on country, taxes, accessories, etc.
Engine
Displacement50.00 ccm (3.05 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke39.0 x 41.7 mm (1.5 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
ExhaustTuned pipe and silencer
LubricationMixture lubrication
CoolingLiquid
Chassis
Frame TypeDouble Cradle 4130 ChrMo Steel
Rake
Trail
Front SuspensionMarzocchi 32mm
Front Travel160 mm (6.3 inches)
Rear SuspensionÖhlins Piggyback
Rear Travel170 mm (6.7 inches)
Seat
Seat Height607 mm (23.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance216 mm (8.5 inches)
Wheelbase908 mm (35.7 inches)
Dry Weight36.7 kg (81.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre2.50-12
Rear Tire/Tyre2.75-10
Front BrakesSingle disc
Front Brake Diameter160 mm (6.3 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
