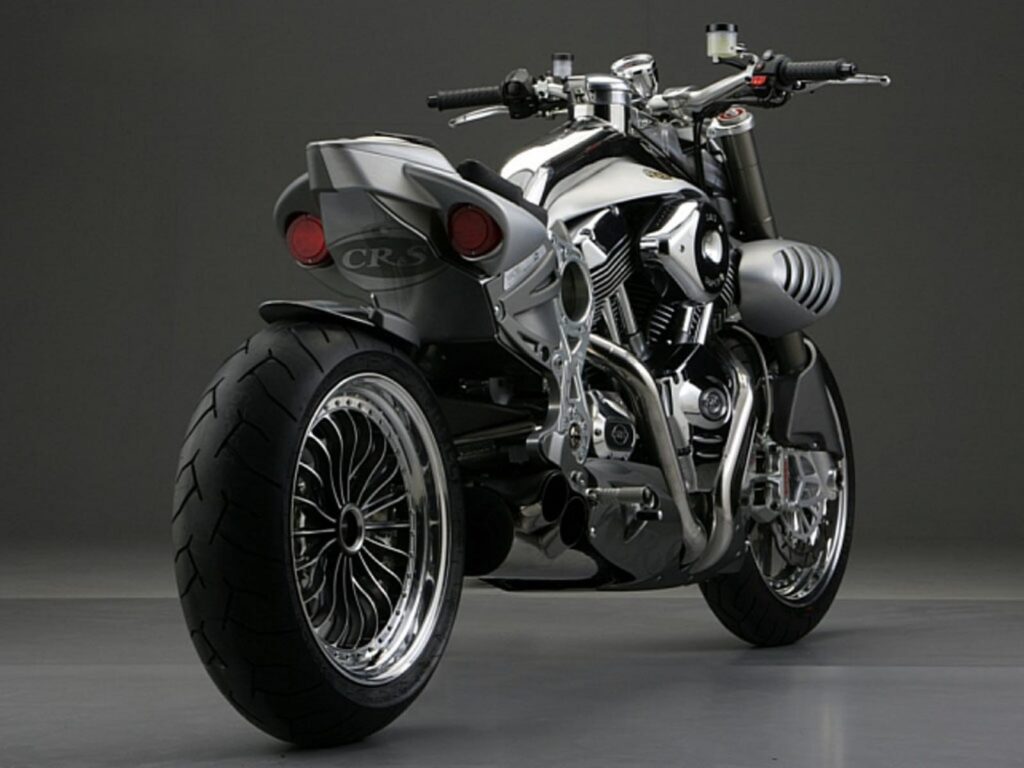

2009 CR&S VUN Evoluzion Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 CR&S VUN Evoluzion.

Basic Specs

Year2009
MakeCR&S
ModelCR&S VUN Evoluzion
Cost Euro 11800. Prices depend on country, taxes, accessories, etc.

Engine

Displacement652.00 ccm (39.79 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke100.0 x 83.0 mm (3.9 x 3.3 inches)
Valves/Cylinder4
FuelingInjection. Integrated CR and S/Walbro/Dell’Orto ignition/injection system, 52 mm throttle housing, twin injectors, twin spark
IgnitionWalbro integrated
Exhaust
LubricationDry sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final Drive
ClutchWet multiplate
Driveline

Performance

Horespower53.64 HP (39.2 kW)
Torque58.90 Nm (6.0 kgf-m or 43.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.50 litres (3.30 gallons)
Emissions

Chassis

Frame TypeSteel tubes and machined light alloy plates compound
Rake
Trail
Front SuspensionTele-hydraulic fork with 46mm diameter rods
Front Travel120 mm (4.7 inches)
Rear SuspensionOscillating swingarm, single shock absorber
Rear Travel128 mm (5.0 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height820 mm (32.3 inches) If adjustable, highest setting.
Total Height
Total Length1,980 mm (78.0 inches)
Total Width740 mm (29.1 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,368 mm (53.9 inches)
Dry Weight135.0 kg (297.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre160/60-ZR17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the CR&S VUN Evoluzion. This Naked bike model is powered by a Single cylinder, four-stroke engine with 652.00 ccm (39.79 cubic inches) of actual displacement before 9.7:1 compression. Fueling is metered via Injection. Integrated CR and S/Walbro/Dell’Orto ignition/injection system, 52 mm throttle housing, twin injectors, twin spark allowing this machine to produce its 53.64 HP (39.2 kW) horsepower and 58.90 Nm (6.0 kgf-m or 43.4 ft.lbs) torque. According to our records engine heat of the CR&S VUN Evoluzion is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 160/60-ZR17 . The entire package is supported by the frame, Steel tubes and machined light alloy plates compound. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The CR&S VUN Evoluzion was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
