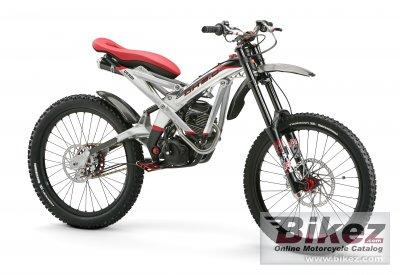

These are the known mechanical and performance specifications for your 2009 Derbi DH 2.0.
Basic Specs

Engine
Displacement96.21 ccm (5.87 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke50.0 x 49.0 mm (2.0 x 1.9 inches)
Valves/Cylinder
Fueling
Ignition
Exhaust
LubricationDry sump
CoolingAir
Drivetrain
Gearbox1-speed
Final DriveChain
ClutchWet automatic centrifugal
Driveline
Performance
Horespower10.72 HP (7.8 kW)
Torque7.10 Nm (0.7 kgf-m or 5.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity2.00 litres (0.53 gallons)
Emissions
Chassis
Frame TypeAluminium. Integrated fuel tank
Rake
Trail
Front Suspension38 upside down fork. 200 mm travel
Front Travel
Rear SuspensionAir monoshock, and flexible carbon cantilever. Wheel travel 150 mm
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width710 mm (28.0 inches)
Ground Clearance
Wheelbase1,296 mm (51.0 inches)
Dry Weight40.0 kg (88.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre3/26-3.0
Rear Tire/Tyre3/26/2001
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels


Comments
