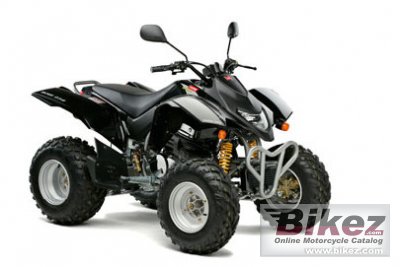

These are the known mechanical and performance specifications for your 2009 Derbi DXR 250.
Basic Specs
Engine
Displacement234.00 ccm (14.28 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke
Valves/Cylinder
FuelingCarburettor. Keihin
Ignition
Exhaust
LubricationOil pump
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity8.00 litres (2.11 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionDouble braced independenly adjustable
Front Travel
Rear SuspensionSingle braced (Unitrack system)
Rear Travel
Seat
Seat Height610 mm (24.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,030 mm (40.6 inches)
Total Length1,640 mm (64.6 inches)
Total Width860 mm (33.9 inches)
Ground Clearance
Wheelbase1,080 mm (42.5 inches)
Dry Weight173.0 kg (381.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/TyreAT21x7-10
Rear Tire/TyreAT21x7-10
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
5-speed with reverse. Spanish ATV.
