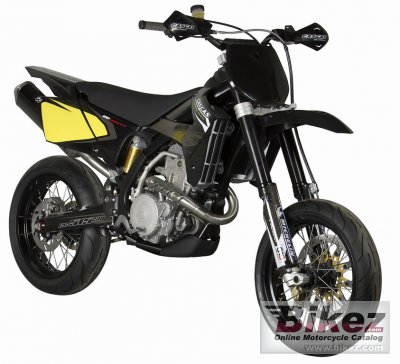

These are the known mechanical and performance specifications for your 2009 GAS GAS SM 515 Supermotard.
Basic Specs

Engine
Displacement492.00 ccm (30.02 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke97.0 x 60.8 mm (3.8 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. EFI
IgnitionIntegrated in the injection system.
Exhaust
LubricationBy fuel mixture.
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchMultidisc in oil bath, hydraulically operated.
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.50 litres (1.98 gallons)
Emissions
Chassis
Frame TypeDeltabox* built with ´D´ profile CrMo tubing
Rake
Trail
Front Suspension45 mm upside-down fork
Front Travel290 mm (11.4 inches)
Rear SuspensionOne-piece aluminium swing arm. Sachs shock absorber.
Rear Travel320 mm (12.6 inches)
Seat
Seat Height900 mm (35.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance255 mm (10.0 inches)
Wheelbase1,465 mm (57.7 inches)
Dry Weight119.0 kg (262.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/60-17
Rear Tire/Tyre150/60-17
Front BrakesSingle disc. 2 pistons caliper
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
