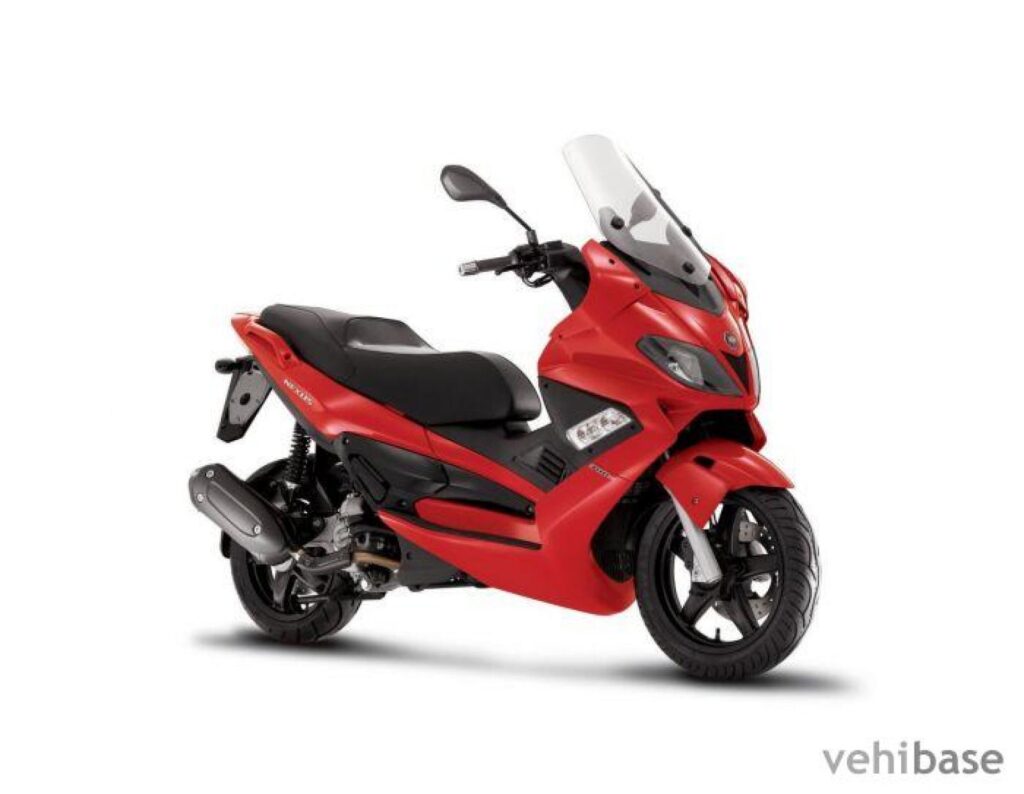

2009 Gilera Nexus 300 Simoncelli Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Gilera Nexus 300 Simoncelli.

Basic Specs

Year2009
MakeGilera
ModelGilera Nexus 300 Simoncelli
Cost

Engine

Displacement292.00 ccm (17.82 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke75.0 x 63.0 mm (3.0 x 2.5 inches)
Valves/Cylinder
FuelingInjection
IgnitionElectronic inductive discharge
ExhaustClosed loop system with lambda sensor and three-way catalytic converter in exhaust pipe
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
ClutchDry centrifugal type
Driveline

Performance

Horespower22.40 HP (16.4 kW)
Torque23.00 Nm (2.3 kgf-m or 17.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity15.00 litres (3.96 gallons)
Emissions

Chassis

Frame TypeDouble cradle trellis made of high-strength steel tubes
Rake
Trail
Front SuspensionTelescopic hydraulic fork
Front Travel94 mm (3.7 inches)
Rear SuspensionDouble hydraulic shock absorber with four-position spring preload
Rear Travel76 mm (3.0 inches)
Seat
Seat Height815 mm (32.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,100 mm (82.7 inches)
Total Width780 mm (30.7 inches)
Ground Clearance
Wheelbase1,530 mm (60.2 inches)
Dry Weight174.0 kg (383.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-15
Rear Tire/Tyre140/60-14
Front BrakesSingle disc. Stainless steel disk, two-piston floating caliper
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Stainless steel disk, caliper with two opposite pistons
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Gilera Nexus 300 Simoncelli. This Scooter model is powered by a Single cylinder, four-stroke engine with 292.00 ccm (17.82 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its 22.40 HP (16.4 kW) horsepower and 23.00 Nm (2.3 kgf-m or 17.0 ft.lbs) torque. According to our records engine heat of the Gilera Nexus 300 Simoncelli is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-15 and the rear is 140/60-14 . The entire package is supported by the frame, Double cradle trellis made of high-strength steel tubes. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Stainless steel disk, two-piston floating caliper front brakes and Single disc. Stainless steel disk, caliper with two opposite pistons rear brakes. The Gilera Nexus 300 Simoncelli was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Limited edition named after Marco Simoncelli.
