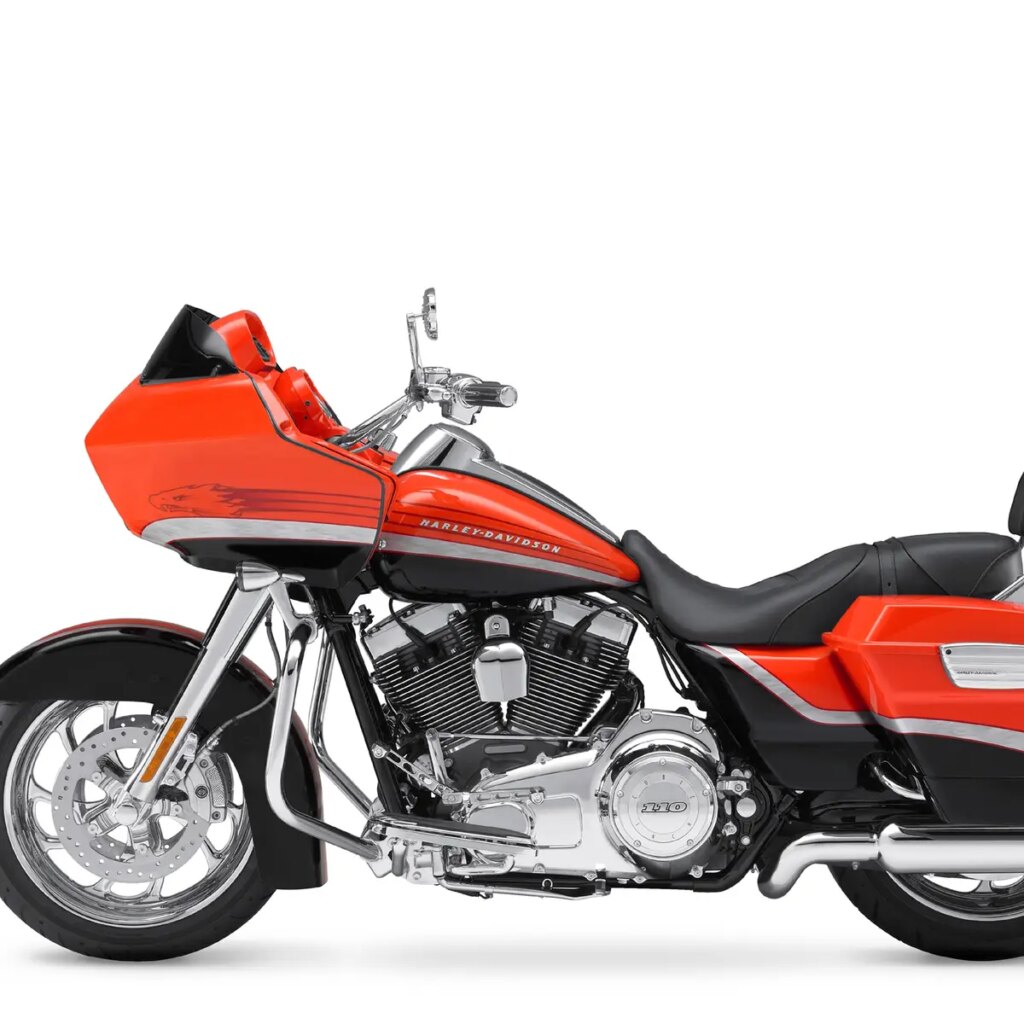

2009 Harley-Davidson FLTRSE3 CVO Road Glide Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Harley-Davidson FLTRSE3 CVO Road Glide.

Basic Specs

Year2009
MakeHarley-Davidson
ModelHarley-Davidson FLTRSE3 CVO Road Glide
Cost

Engine

Displacement1800.00 ccm (109.84 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke101.6 x 111.3 mm (4.0 x 4.4 inches)
Valves/Cylinder
FuelingInjection
Ignition
ExhaustChrome, 2-1-2 exhaust header pipe design with
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchHydraulically actuated, 9-plate wet, with high performance spring
Driveline

Performance

Horespower
Torque155.00 Nm (15.8 kgf-m or 114.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity22.70 litres (6.00 gallons)
Emissions

Chassis

Frame TypeNew mild steel, single spar rigid backbone with
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension41.3mm telescopic, cartridge-style damping
Front Travel117 mm (4.6 inches)
Rear SuspensionAir-adjustable
Rear Travel51 mm (2.0 inches)
Seat
Seat Height668 mm (26.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,428 mm (95.6 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,614 mm (63.5 inches)
Dry Weight384.0 kg (846.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre130/70-B18
Rear Tire/Tyre180/55-B18
Front BrakesDouble disc. 4-piston calipers
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 2-piston calipers
Rear Brake Diameter300 mm (11.8 inches)
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FLTRSE3 CVO Road Glide. This Custom / cruiser model is powered by a V2, four-stroke engine with 1800.00 ccm (109.84 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and 155.00 Nm (15.8 kgf-m or 114.3 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLTRSE3 CVO Road Glide is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/70-B18 and the rear is 180/55-B18 . The entire package is supported by the frame, New mild steel, single spar rigid backbone with. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4-piston calipers front brakes and Single disc. 2-piston calipers rear brakes. The Harley-Davidson FLTRSE3 CVO Road Glide was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

CVO is HD´s Custom Vehicle Operations.
