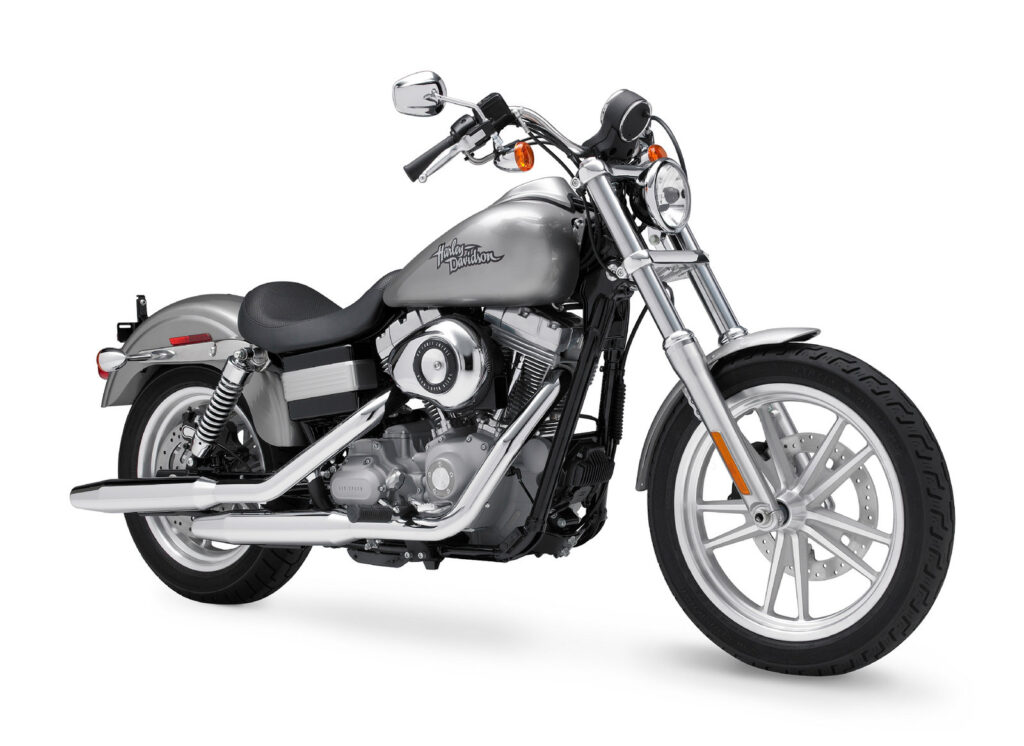

2009 Harley-Davidson FXD Dyna Super Glide Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Harley-Davidson FXD Dyna Super Glide.

Basic Specs

Year2009
MakeHarley-Davidson
ModelHarley-Davidson FXD Dyna Super Glide
Cost

Engine

Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome Staggered Shorty Dual exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
Clutch
Driveline

Performance

Horespower
Torque123.00 Nm (12.5 kgf-m or 90.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Fuel Capacity18.16 litres (4.80 gallons)
Emissions116.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped,
Rake29.0°
Trail119 mm (4.7 inches)
Front Suspension49mm with polished aluminium fork
Front Travel127 mm (5.0 inches)
Rear SuspensionCoil-over shock
Rear Travel104 mm (4.1 inches)
Seat
Seat Height675 mm (26.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,188 mm (46.8 inches)
Total Length2,357 mm (92.8 inches)
Total Width
Ground Clearance135 mm (5.3 inches)
Wheelbase1,630 mm (64.2 inches)
Dry Weight286.0 kg (630.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/90-19
Rear Tire/Tyre160/70-B17
Front BrakesSingle disc. 4-piston
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter292 mm (11.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FXD Dyna Super Glide. This Custom / cruiser model is powered by a V2, four-stroke engine with 1584.00 ccm (96.66 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its horsepower and 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FXD Dyna Super Glide is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 100/90-19 and the rear is 160/70-B17 . The entire package is supported by the frame, Mild steel, tubular frame; rectangular section backbone; stamped,. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 4-piston front brakes and Single disc. 2-piston rear brakes. The Harley-Davidson FXD Dyna Super Glide was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Silver powder-coated engine and polished rocker boxes.
