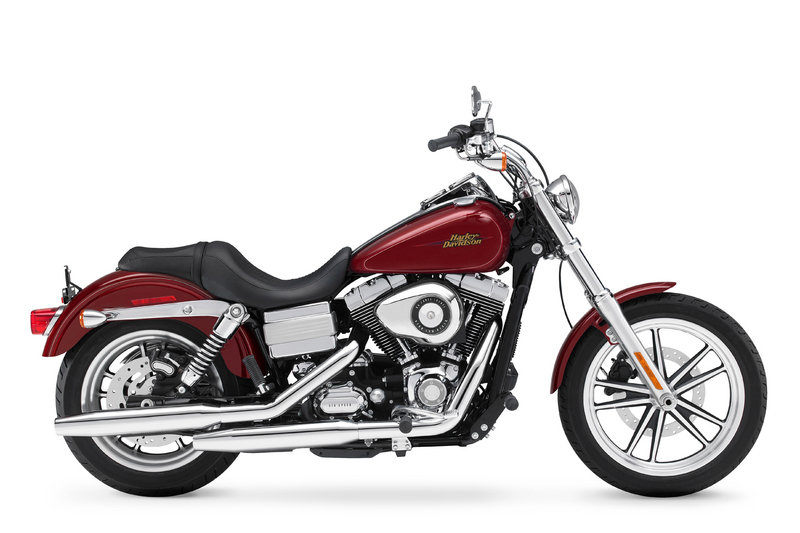

2009 Harley-Davidson FXDL Dyna Low Rider Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Harley-Davidson FXDL Dyna Low Rider.

Basic Specs

Year2009
MakeHarley-Davidson
ModelHarley-Davidson FXDL Dyna Low Rider
Cost

Engine

Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
Clutch9-plate, wet
Driveline

Performance

Horespower
Torque125.00 Nm (12.7 kgf-m or 92.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Fuel Capacity18.70 litres (4.94 gallons)
Emissions116.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped,
Rake29.0°
Trail119 mm (4.7 inches)
Front Suspension49mm with polished aluminium fork
Front Travel127 mm (5.0 inches)
Rear SuspensionCoil-over shock
Rear Travel104 mm (4.1 inches)
Seat
Seat Height655 mm (25.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,193 mm (47.0 inches)
Total Length2,364 mm (93.1 inches)
Total Width922 mm (36.3 inches)
Ground Clearance125 mm (4.9 inches)
Wheelbase1,640 mm (64.6 inches)
Dry Weight290.0 kg (639.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/90-19
Rear Tire/Tyre160/70-B17
Front BrakesSingle disc. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FXDL Dyna Low Rider. This Custom / cruiser model is powered by a V2, four-stroke engine with 1584.00 ccm (96.66 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its horsepower and 125.00 Nm (12.7 kgf-m or 92.2 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FXDL Dyna Low Rider is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 100/90-19 and the rear is 160/70-B17 . The entire package is supported by the frame, Mild steel, tubular frame; rectangular section backbone; stamped,. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 4-piston front brakes and Single disc. 2-piston rear brakes. The Harley-Davidson FXDL Dyna Low Rider was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Black powder-coated engine with chrome covers.
