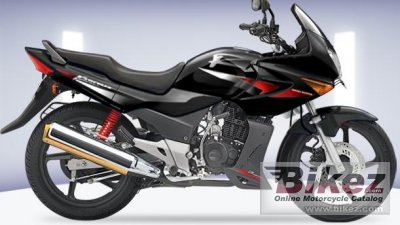

These are the known mechanical and performance specifications for your 2009 Hero Honda Karizma.
Basic Specs
Engine
Displacement223.00 ccm (13.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke65.5 x 66.2 mm (2.6 x 2.6 inches)
Valves/Cylinder
FuelingCarburettor. VE
IgnitionDigital
Exhaust
Lubrication
CoolingAir
Performance
Horespower16.89 HP (12.3 kW)
Torque18.50 Nm (1.9 kgf-m or 13.6 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.00 litres (3.96 gallons)
Emissions
Chassis
Frame TypeTubular single cradle, diamond type
Rake
Trail
Front SuspensionTelescopic Hydraulic
Front Travel
Rear SuspensionSwing arm with 5 step hydraulic shock absorbers
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length2,125 mm (83.7 inches)
Total Width
Ground Clearance150 mm (5.9 inches)
Wheelbase1,355 mm (53.3 inches)
Dry Weight
Wet Weight150.0 kg (330.7 pounds)
Wheels & Brakes
Front Tire/Tyre2.75-18
Rear Tire/Tyre100/90-18
Front BrakesSingle disc
Front Brake Diameter276 mm (10.9 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
