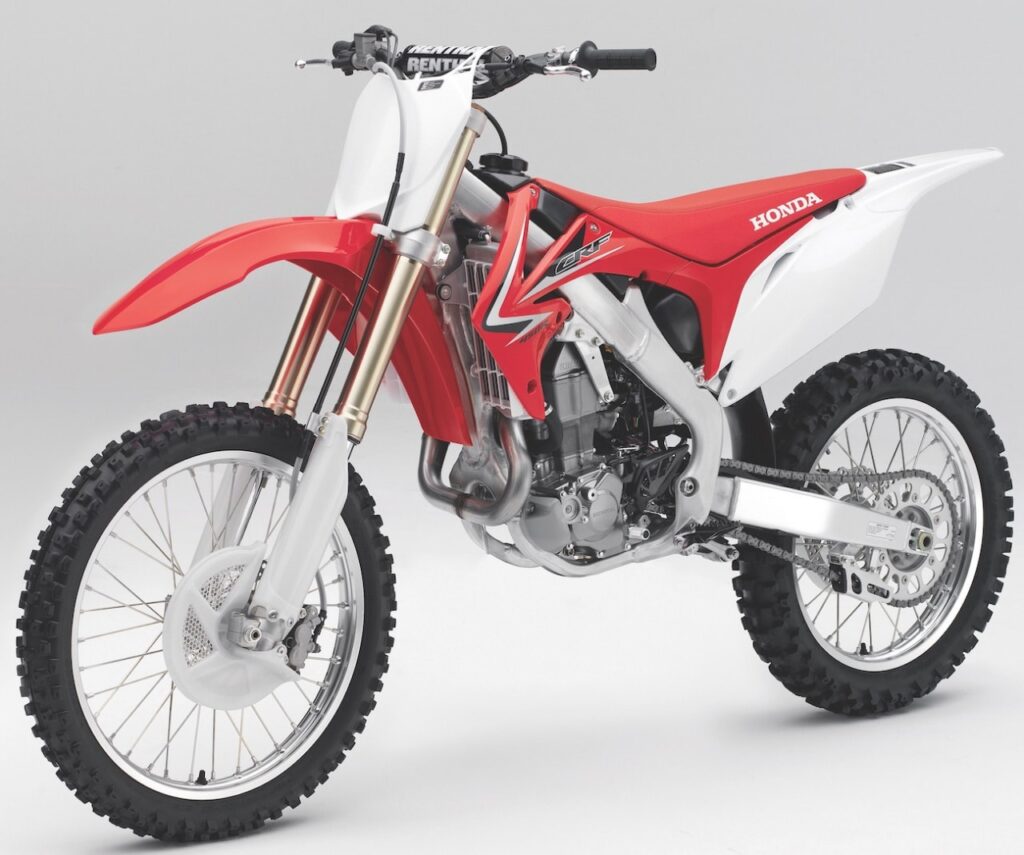

2009 Honda CRF450R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Honda CRF450R.

Basic Specs

Year2009
MakeHonda
ModelHonda CRF450R
Cost

Engine

Displacement449.00 ccm (27.40 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke96.0 x 62.1 mm (3.8 x 2.4 inches)
Valves/Cylinder4
FuelingCarburettor
IgnitionComputer-controlled digital transistorised with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower50.69 HP (37.0 kW)
Torque46.90 Nm (4.8 kgf-m or 34.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.20 litres (1.90 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionHPSD steering damper, 47mm Showa inverted leading-axle twin-chamber cartridge-type telescopic fork with 16-step adjustable compression and rebound damping
Front Travel315 mm (12.4 inches)
Rear SuspensionPro-Link with Showa damper, adjustable low-speed (13-step) and high-speed (3.5-turn) compression and 17-step rebound damping
Rear Travel320 mm (12.6 inches)
Seat
Seat Height955 mm (37.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height2,189 mm (86.2 inches)
Total Length2,189 mm (86.2 inches)
Total Width
Ground Clearance340 mm (13.4 inches)
Wheelbase1,489 mm (58.6 inches)
Dry Weight109.0 kg (240.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre80/100-21
Rear Tire/Tyre110/90-19
Front BrakesSingle disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CRF450R. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 449.00 ccm (27.40 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 50.69 HP (37.0 kW) horsepower and 46.90 Nm (4.8 kgf-m or 34.6 ft.lbs) torque. According to our records engine heat of the Honda CRF450R is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/100-21 and the rear is 110/90-19 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Honda CRF450R was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
