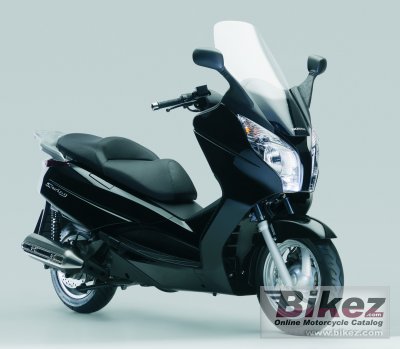

2009 Honda S-Wing 150 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Honda S-Wing 150.

Basic Specs

Year2009
MakeHonda
ModelHonda S-Wing 150
Cost

Engine

Displacement149.00 ccm (9.09 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke
Valves/Cylinder2
FuelingInjection
IgnitionDigital transistorised with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.40 litres (2.48 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension33mm telescopic fork, 85.7mm axle travel
Front Travel
Rear SuspensionDual-damper unit swingarm, 98.1mm axle travel
Rear Travel
Seat
Seat Height776 mm (30.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,090 mm (82.3 inches)
Total Width
Ground Clearance134 mm (5.3 inches)
Wheelbase1,490 mm (58.7 inches)
Dry Weight157.0 kg (346.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/90-M13
Rear Tire/Tyre130/70-M12
Front BrakesSingle disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda S-Wing 150. This Scooter model is powered by a Single cylinder, four-stroke engine with 149.00 ccm (9.09 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda S-Wing 150 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 110/90-M13 and the rear is 130/70-M12 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Honda S-Wing 150 was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
