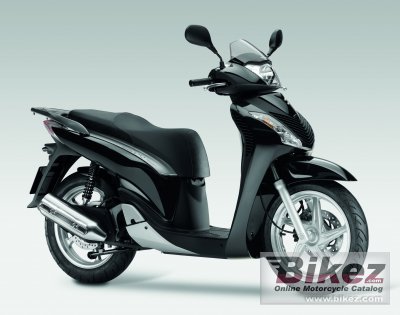

2009 Honda SH125i Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Honda SH125i.

Basic Specs

Year2009
MakeHonda
ModelHonda SH125i
Cost

Engine

Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke52.4 x 57.8 mm (2.1 x 2.3 inches)
Valves/Cylinder
FuelingInjection. PGM-FI electronic fuel injection
IgnitionDigital transistorised with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox
Final DriveBelt
Clutch
Driveline

Performance

Horespower13.00 HP (9.5 kW)
Torque11.50 Nm (1.2 kgf-m or 8.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.50 litres (1.98 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension33mm telescopic fork, 90mm axle travel
Front Travel
Rear SuspensionDual damper unit swingarm, 82mm axle travel
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height2,020 mm (79.5 inches)
Total Length2,020 mm (79.5 inches)
Total Width
Ground Clearance149 mm (5.9 inches)
Wheelbase1,335 mm (52.6 inches)
Dry Weight120.0 kg (264.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/80-16
Rear Tire/Tyre120/80-16
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda SH125i. This Scooter model is powered by a Single cylinder, four-stroke engine with 125.00 ccm (7.63 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection. PGM-FI electronic fuel injection  allowing this machine to produce its 13.00 HP (9.5 kW) horsepower and 11.50 Nm (1.2 kgf-m or 8.5 ft.lbs) torque. According to our records engine heat of the Honda SH125i is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 100/80-16 and the rear is 120/80-16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Honda SH125i was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
