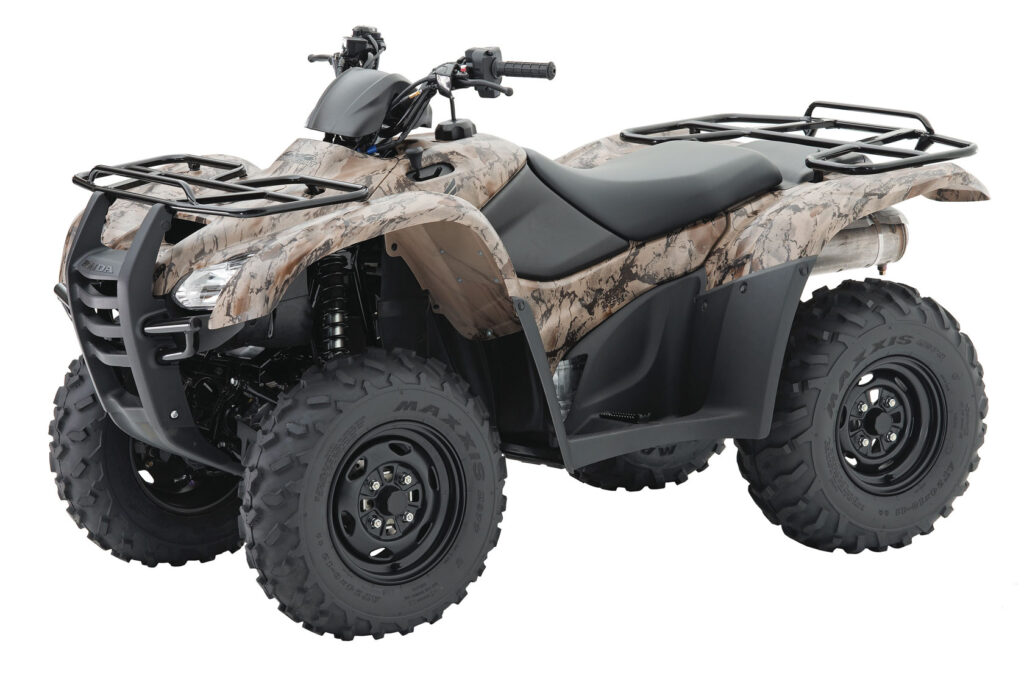

These are the known mechanical and performance specifications for your 2009 Honda TRX420FA.
Basic Specs
Year2009
MakeHonda
ModelHonda TRX420FA
TypeATV
CostUS$ 6599. Prices depend on country, taxes, accessories, etc.
Engine
Displacement420.00 ccm (25.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke86.5 x 71.5 mm (3.4 x 2.8 inches)
Valves/Cylinder
FuelingInjection. Programmed Fuel Injection (PGM-FI), 34mm throttle bodies
IgnitionFull-transistorized type with electronic advance
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity13.24 litres (3.50 gallons)
Emissions
Chassis
Frame TypeIndependent double-wishbone; 6.3 inches travel
Rake
Trail
Front SuspensionIndependent double-wishbone
Front Travel160 mm (6.3 inches)
Rear SuspensionIndependent double-wishbone
Rear Travel160 mm (6.3 inches)
Seat
Seat Height823 mm (32.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,146 mm (45.1 inches)
Total Length2,055 mm (80.9 inches)
Total Width1,171 mm (46.1 inches)
Ground Clearance231 mm (9.1 inches)
Wheelbase1,255 mm (49.4 inches)
Dry Weight
Wet Weight282.6 kg (623.0 pounds)
Wheels & Brakes
Front Tire/Tyre24/8-12
Rear Tire/Tyre24/10-11
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
With reverse. Model named Honda FourTrax Ranger AT in some markets.
