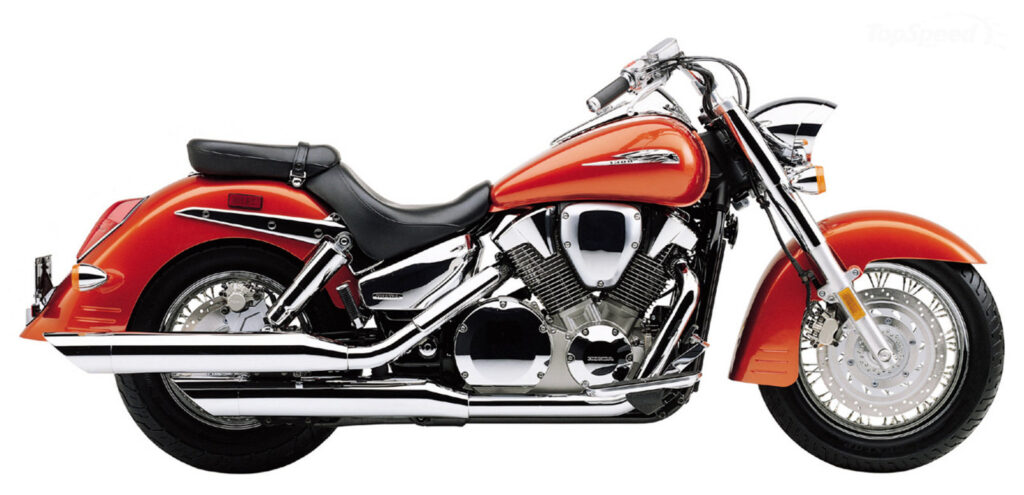

These are the known mechanical and performance specifications for your 2009 Honda VTX1300C.
Basic Specs
Year2009
MakeHonda
ModelHonda VTX1300C
TypeCustom / cruiser
CostUS$ 9899. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1312.00 ccm (80.06 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke89.5 x 104.3 mm (3.5 x 4.1 inches)
Valves/Cylinder3
FuelingCarburettor. Single 38mm constant-velocity carburetor
IgnitionDigital with three-dimensional mapping, two spark plugs per cylinder
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.16 litres (4.80 gallons)
Emissions
Chassis
Frame Type
Rake32.0°
Trail149 mm (5.9 inches)
Front Suspension41mm fork
Front Travel130 mm (5.1 inches)
Rear SuspensionRear: Dual shocks with five-position spring-preload adjustability
Rear Travel91 mm (3.6 inches)
Seat
Seat Height697 mm (27.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,662 mm (65.5 inches)
Dry Weight
Wet Weight307.5 kg (678.0 pounds)
Wheels & Brakes
Front Tire/Tyre110/90-M19
Rear Tire/Tyre170/80-M15
Front BrakesDouble disc
Front Brake Diameter336 mm (13.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter296 mm (11.7 inches)
Wheels
Comments
Model ID: VTX1300C
