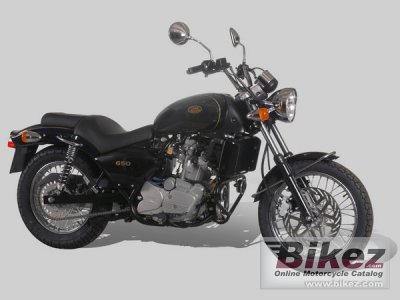

2009 Jawa-CZ 650 Classic Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Jawa-CZ 650 Classic.

Basic Specs

Year2009
MakeJawa-CZ
ModelJawa-CZ 650 Classic
Cost

Engine

Displacement651.90 ccm (39.78 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke100.0 x 83.0 mm (3.9 x 3.3 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower47.47 HP (34.6 kW)
Torque57.00 Nm (5.8 kgf-m or 42.0 ft.lbs)
Top Speed155.0 km/h (96.3 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.20 litres (3.75 gallons)
Emissions

Chassis

Frame TypeSteel
Rake
Trail
Front SuspensionTelescopic forks
Front Travel
Rear SuspensionHydraulic telescopic
Rear Travel
Seat
Seat Height712 mm (28.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,525 mm (60.0 inches)
Dry Weight180.0 kg (396.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-18
Rear Tire/Tyre130/90-16
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Jawa-CZ 650 Classic. This Classic model is powered by a Single cylinder, four-stroke engine with 651.90 ccm (39.78 cubic inches) of actual displacement before 9.7:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 47.47 HP (34.6 kW) horsepower and 57.00 Nm (5.8 kgf-m or 42.0 ft.lbs) torque. According to our records engine heat of the Jawa-CZ 650 Classic is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-18 and the rear is 130/90-16 . The entire package is supported by the frame, Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Jawa-CZ 650 Classic was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
