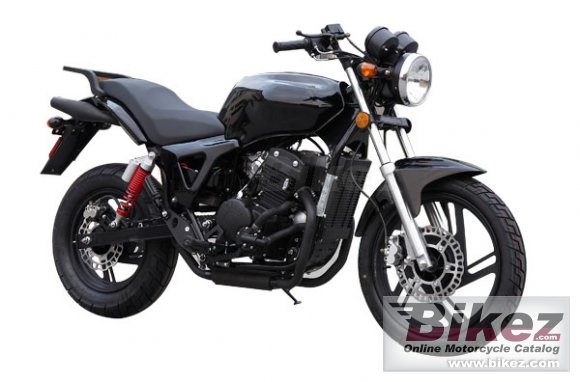

These are the known mechanical and performance specifications for your 2009 Johnny Pag FX-3.
Basic Specs
Year2009
MakeJohnny Pag
ModelJohnny Pag FX-3
TypeNaked bike
CostUS$ 3399. Prices depend on country, taxes, accessories, etc.
Engine
Displacement300.00 ccm (18.31 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.2:1
Bore/Stroke57.0 x 53.0 mm (2.2 x 2.1 inches)
Valves/Cylinder2
FuelingCarburettor. Keihin
IgnitionC.D.I.
Exhaust
LubricationForced Lubrication
CoolingLiquid
Performance
Horespower23.80 HP (17.4 kW)
Torque18.50 Nm (1.9 kgf-m or 13.6 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption3.61 litres/100 km (27.7 km/l or 65.16 mpg)
Fuel Capacity15.89 litres (4.20 gallons)
Emissions83.8 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake35.0°
Trail
Front Suspension33mm forks
Front Travel
Rear SuspensionDual shocks
Rear Travel
Seat
Seat Height787 mm (31.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance152 mm (6.0 inches)
Wheelbase1,499 mm (59.0 inches)
Dry Weight
Wet Weight158.8 kg (350.0 pounds)
Wheels & Brakes
Front Tire/Tyre90/90-18
Rear Tire/Tyre130/90-15
Front BrakesSingle disc. 2-piston calipers
Front Brake Diameter
Rear BrakesSingle disc. 2-piston calipers
Rear Brake Diameter
Wheels
Comments
Also called JPM FX-3.
