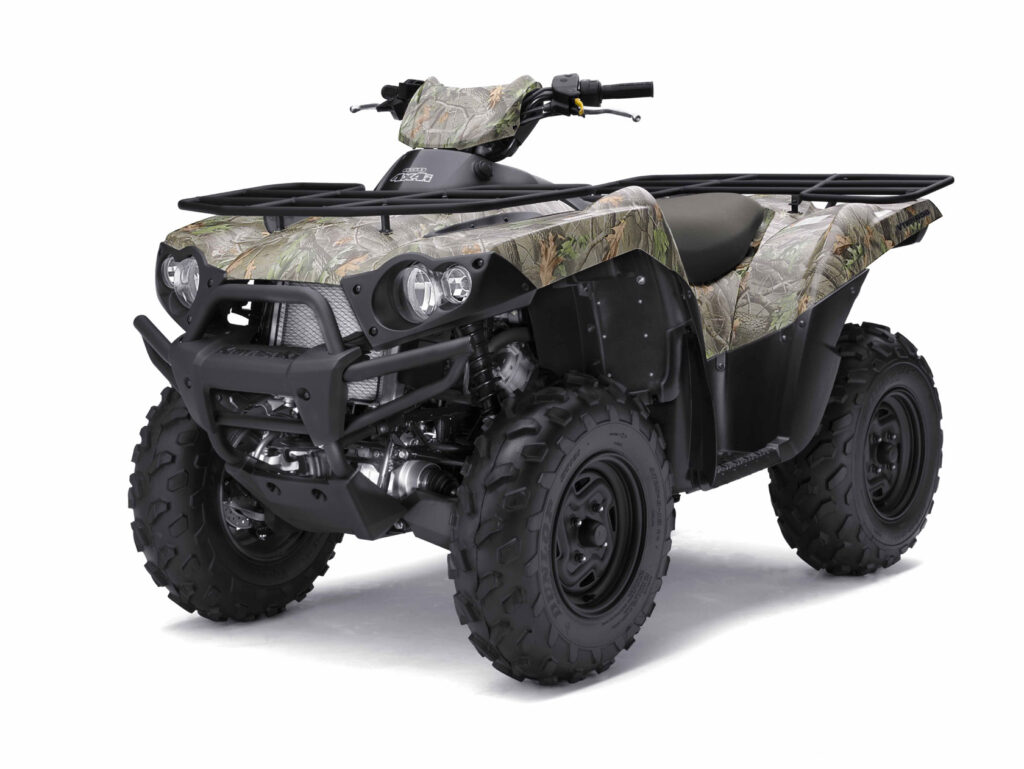

2009 Kawasaki Brute Force 650 4x4 Camo Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Kawasaki Brute Force 650 4x4 Camo.

Basic Specs

Year2009
MakeKawasaki
ModelKawasaki Brute Force 650 4x4 Camo
TypeATV
CostUS$ 6899. Prices depend on country, taxes, accessories, etc.

Engine

Displacement633.00 ccm (38.63 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.9:1
Bore/Stroke80.0 x 63.0 mm (3.1 x 2.5 inches)
Valves/Cylinder4
FuelingCarburettor. 2 Keihin CVKR-D32
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.43 litres (5.40 gallons)
Emissions

Chassis

Frame TypeDouble-cradle, tubular steel
Rake
Trail
Front SuspensionDual A-Arms, two shocks with five-way preload adjustment / 6.7 in.
Front Travel
Rear SuspensionDual A-Arms, two shocks with five-way preload adjustment / 7.9 in.
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length2,195 mm (86.4 inches)
Total Width
Ground Clearance246 mm (9.7 inches)
Wheelbase1,285 mm (50.6 inches)
Dry Weight
Wet Weight294.1 kg (648.3 pounds)

Wheels & Brakes

Front Tire/Tyre25/8-12 (AT)
Rear Tire/Tyre25/10-12 (AT)
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSealed multidisc. Sealed, oil-bathed, multi-disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Brute Force 650 4x4 Camo. This ATV model is powered by a V2, four-stroke engine with 633.00 ccm (38.63 cubic inches) of actual displacement before 9.9:1 compression. Fueling is metered via Carburettor. 2 Keihin CVKR-D32 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki Brute Force 650 4x4 Camo is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 25/8-12 (AT) and the rear is 25/10-12 (AT) . The entire package is supported by the frame, Double-cradle, tubular steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Sealed multidisc. Sealed, oil-bathed, multi-disc rear brakes. The Kawasaki Brute Force 650 4x4 Camo was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
