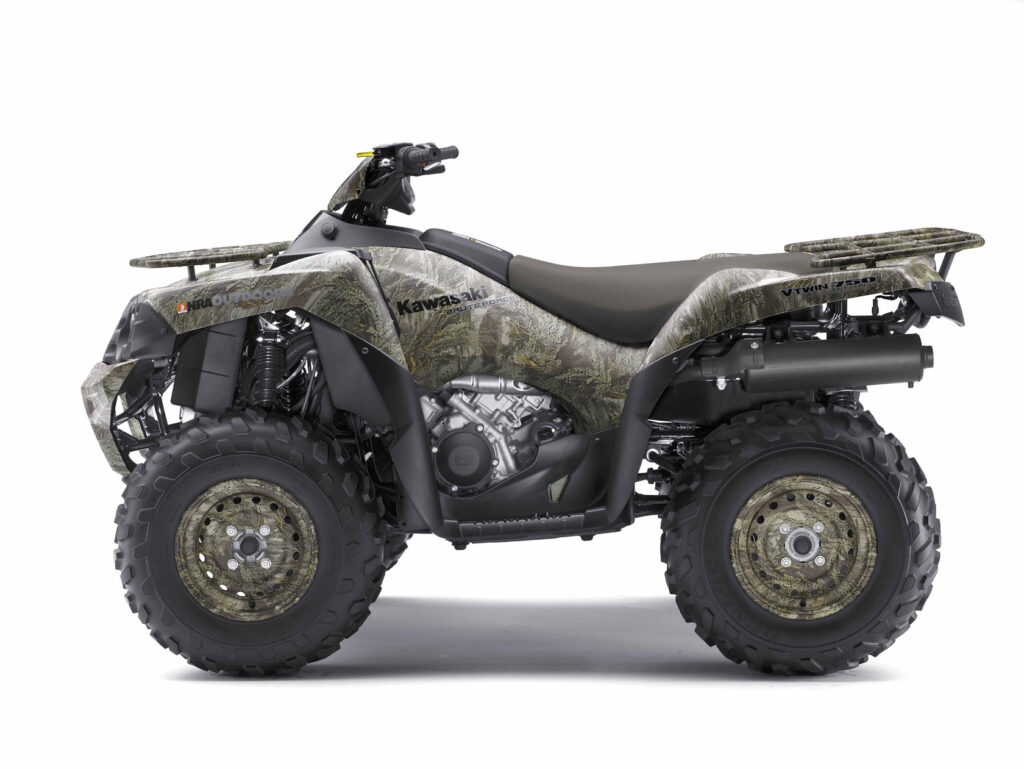

2009 Kawasaki Brute Force 750 NRA Outdoors Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Kawasaki Brute Force 750 NRA Outdoors.

Basic Specs

Year2009
MakeKawasaki
ModelKawasaki Brute Force 750 NRA Outdoors
TypeATV
CostUS$ 8949. Prices depend on country, taxes, accessories, etc.

Engine

Displacement749.00 ccm (45.70 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.8:1
Bore/Stroke85.0 x 66.0 mm (3.3 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. Fuel Injection; (2) 36mm Mikuni throttle bodies
IgnitionDigital DC-CDI
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.92 litres (5.00 gallons)
Emissions

Chassis

Frame TypeDouble-cradle, tubular steel
Rake
Trail
Front SuspensionDual A-arm / 6.7 in.
Front Travel
Rear SuspensionFully Independent, dual A-arm / 7.9 in.
Rear Travel
Seat
Seat Height902 mm (35.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,232 mm (48.5 inches)
Total Length2,195 mm (86.4 inches)
Total Width1,166 mm (45.9 inches)
Ground Clearance246 mm (9.7 inches)
Wheelbase1,283 mm (50.5 inches)
Dry Weight
Wet Weight296.1 kg (652.7 pounds)

Wheels & Brakes

Front Tire/Tyre25/8-12 (AT)
Rear Tire/Tyre25/10-12 (AT)
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSealed multidisc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Brute Force 750 NRA Outdoors. This ATV model is powered by a V2, four-stroke engine with 749.00 ccm (45.70 cubic inches) of actual displacement before 8.8:1 compression. Fueling is metered via Injection. Fuel Injection; (2) 36mm Mikuni throttle bodies allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki Brute Force 750 NRA Outdoors is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 25/8-12 (AT) and the rear is 25/10-12 (AT) . The entire package is supported by the frame, Double-cradle, tubular steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Sealed multidisc rear brakes. The Kawasaki Brute Force 750 NRA Outdoors was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

4 wheel drive. 4 x 40W headlights, 5W taillight, 21W stoplight
