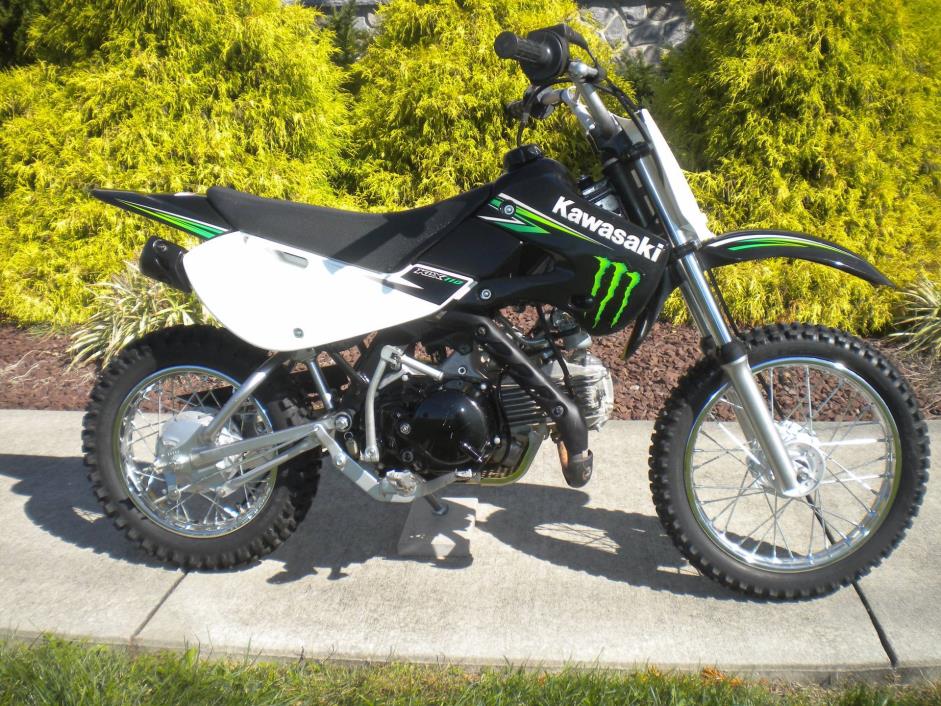

2009 Kawasaki KLX 110 Monster Energy Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Kawasaki KLX 110 Monster Energy.

Basic Specs

Year2009
MakeKawasaki
ModelKawasaki KLX 110 Monster Energy
CostUS$ 1949. Prices depend on country, taxes, accessories, etc.

Engine

Displacement111.00 ccm (6.77 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke53.0 x 50.6 mm (2.1 x 2.0 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PB18
IgnitionCDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox3-speed
Final Drive
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity3.78 litres (1.00 gallons)
Emissions

Chassis

Frame TypeBackbone frame, high-tensile steel
Rake
Trail
Front Suspension30mm hydraulic telescopic fork / 4.3 in.
Front Travel
Rear SuspensionSwingarm with single hydraulic shock / 4.2 in.
Rear Travel
Seat
Seat Height650 mm (25.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,554 mm (61.2 inches)
Total Width
Ground Clearance191 mm (7.5 inches)
Wheelbase1,064 mm (41.9 inches)
Dry Weight
Wet Weight67.9 kg (149.8 pounds)

Wheels & Brakes

Front Tire/Tyre70/14-19
Rear Tire/Tyre90/12-16
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KLX 110 Monster Energy. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 111.00 ccm (6.77 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Carburettor. Keihin PB18 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki KLX 110 Monster Energy is moderated by Air. You'll need to get familiar with the 3-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 70/14-19 and the rear is 90/12-16 . The entire package is supported by the frame, Backbone frame, high-tensile steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Kawasaki KLX 110 Monster Energy was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
