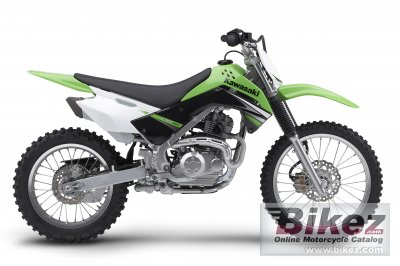

These are the known mechanical and performance specifications for your 2009 Kawasaki KLX140L.
Basic Specs
Year2009
MakeKawasaki
ModelKawasaki KLX140L
TypeEnduro / offroad
CostUS$ 3099. Prices depend on country, taxes, accessories, etc.
Engine
Displacement144.00 ccm (8.79 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke58.0 x 54.4 mm (2.3 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.67 litres (1.50 gallons)
Emissions
Chassis
Frame TypeHigh-Tensile steel, box-section perimeter
Rake27.0°
Trail
Front Suspension33mm telescopic fork / 7.1 in.
Front Travel
Rear SuspensionUNI-TRAK® linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping / 7.1 in.
Rear Travel
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,074 mm (42.3 inches)
Total Length
Total Width790 mm (31.1 inches)
Ground Clearance254 mm (10.0 inches)
Wheelbase1,285 mm (50.6 inches)
Dry Weight
Wet Weight95.0 kg (209.4 pounds)
Wheels & Brakes
Front Tire/Tyre70/80-19
Rear Tire/Tyre90/90-16
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels
