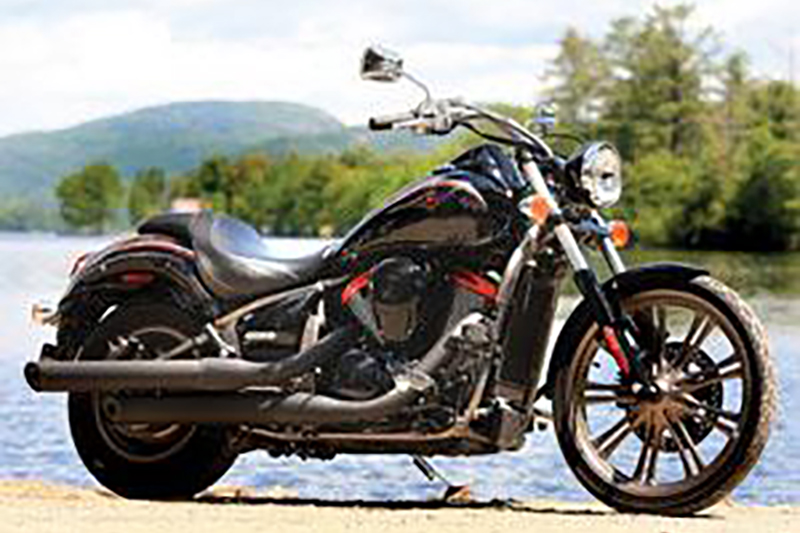

2009 Kawasaki Vulcan 900 Custom Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Kawasaki Vulcan 900 Custom.

Basic Specs

Year2009
MakeKawasaki
ModelKawasaki Vulcan 900 Custom
CostUS$ 7699. Prices depend on country, taxes, accessories, etc.

Engine

Displacement903.00 ccm (55.10 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke88.0 x 74.2 mm (3.5 x 2.9 inches)
Valves/Cylinder4
FuelingInjection
IgnitionTCBI with Electronic Advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveBelt
Clutch
Driveline

Performance

Horespower
Torque78.91 Nm (8.0 kgf-m or 58.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.06 litres (5.30 gallons)
Emissions

Chassis

Frame Type
Rake32.0°
Trail183 mm (7.2 inches)
Front Suspension41mm hydraulic telescopic fork / 5.9 in.
Front Travel
Rear SuspensionUni-Track® swingarm, seven-way adjustable spring preload / 4.1 in.
Rear Travel
Seat
Seat Height686 mm (27.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,120 mm (44.1 inches)
Total Length2,405 mm (94.7 inches)
Total Width894 mm (35.2 inches)
Ground Clearance
Wheelbase1,646 mm (64.8 inches)
Dry Weight277.1 kg (610.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre80/90-21
Rear Tire/Tyre180/70-15
Front BrakesSingle disc
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter300 mm (11.8 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Vulcan 900 Custom. This Custom / cruiser model is powered by a V2, four-stroke engine with 903.00 ccm (55.10 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and 78.91 Nm (8.0 kgf-m or 58.2 ft.lbs) torque. According to our records engine heat of the Kawasaki Vulcan 900 Custom is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 80/90-21 and the rear is 180/70-15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Kawasaki Vulcan 900 Custom was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
