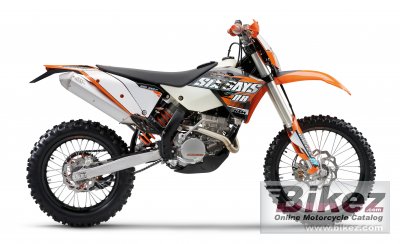

These are the known mechanical and performance specifications for your 2009 KTM 250 EXC-F SixDays.
Basic Specs
Engine
Displacement248.60 ccm (15.17 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.8:1
Bore/Stroke76.0 x 54.8 mm (3.0 x 2.2 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin MX FCR 39
IgnitionKokusan
ExhaustAluminium
LubricationPressure lubrication with 2 oil pumps
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.20 litres (2.43 gallons)
Emissions
Chassis
Frame TypeCentral double-cradle-type 25CrMo4. Aluminium subframe.
Rake26.5°
Trail
Front SuspensionWP USD
Front Travel300 mm (11.8 inches)
Rear SuspensionWP monoshock PDS
Rear Travel335 mm (13.2 inches)
Seat
Seat Height985 mm (38.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance380 mm (15.0 inches)
Wheelbase
Dry Weight105.7 kg (233.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre120/90-18
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
