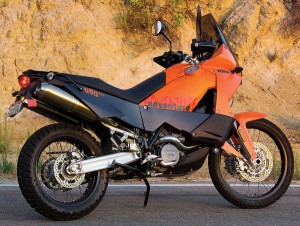

These are the known mechanical and performance specifications for your 2009 KTM 990 Adventure.
Basic Specs

Engine
Displacement999.00 ccm (60.96 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke101.0 x 62.4 mm (4.0 x 2.5 inches)
Valves/Cylinder4
FuelingInjection. Keihin electronic fuel injection
IgnitionDenso battery ignition
Exhaust2 x premium steel with three-way-catalyser
LubricationPressure lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet multi-disc clutch, operated hydraulically
Driveline
Performance
Horespower104.59 HP (76.3 kW)
Torque100.00 Nm (10.2 kgf-m or 73.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity19.50 litres (5.15 gallons)
Emissions
Chassis
Frame TypeChromium-Molybdenum trellis frame, powder-coated
Rake26.6°
Trail119 mm (4.7 inches)
Front SuspensionWP USD, 48 mm
Front Travel210 mm (8.3 inches)
Rear SuspensionWP monoshock PDS with hydraulic spring preload
Rear Travel210 mm (8.3 inches)
Seat
Seat Height860 mm (33.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance261 mm (10.3 inches)
Wheelbase1,570 mm (61.8 inches)
Dry Weight209.0 kg (460.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre150/70-18
Front BrakesDouble disc. 2 x Brembo two piston, floating caliper, floating brake disc. ABS.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Brembo two piston, floating caliper, floating brake disc. ABS.
Rear Brake Diameter240 mm (9.4 inches)
Wheels
