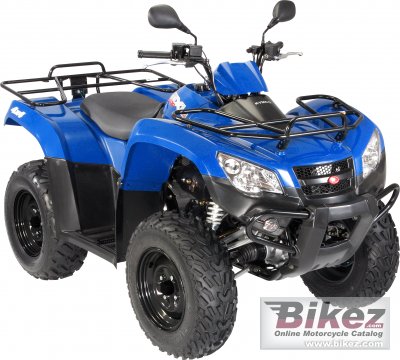

These are the known mechanical and performance specifications for your 2009 Kymco MXU 400.
Basic Specs

Engine
Displacement366.90 ccm (22.39 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression10.0:1
Bore/Stroke81.0 x 71.2 mm (3.2 x 2.8 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionC.D.I.
Exhaust
Lubrication
Cooling
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.00 litres (3.96 gallons)
Emissions
Chassis
Frame TypeSP pipe
Rake
Trail
Front SuspensionDual A-Arm
Front Travel
Rear SuspensionDual A-Arm
Rear Travel
Seat
Seat Height843 mm (33.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,192 mm (46.9 inches)
Total Length2,108 mm (83.0 inches)
Total Width1,108 mm (43.6 inches)
Ground Clearance158 mm (6.2 inches)
Wheelbase1,217 mm (47.9 inches)
Dry Weight275.0 kg (606.3 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre24/8-12
Rear Tire/Tyre24/10-12
Front BrakesSingle disc
Front Brake Diameter202 mm (8.0 inches)
Rear BrakesSingle disc
Rear Brake Diameter202 mm (8.0 inches)
Wheels
Comments
