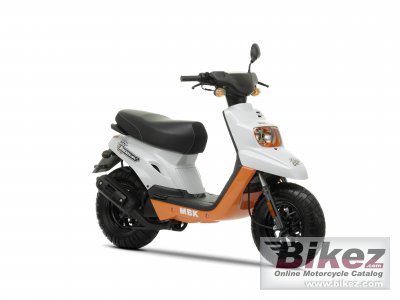

2009 MBK Booster 50 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 MBK Booster 50.

Basic Specs

Year2009
MakeMBK
ModelMBK Booster 50
Cost

Engine

Displacement49.20 ccm (3.00 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression7.2:1
Bore/Stroke40.0 x 39.2 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionC.D.I.
Exhaust
LubricationSeparate lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
ClutchAutomatic centrifugal
Driveline

Performance

Horespower11.39 HP (8.3 kW)
Torque9.00 Nm (0.9 kgf-m or 6.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity5.30 litres (1.40 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel70 mm (2.8 inches)
Rear SuspensionUnit swing
Rear Travel70 mm (2.8 inches)
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length1,680 mm (66.1 inches)
Total Width675 mm (26.6 inches)
Ground Clearance
Wheelbase
Dry Weight
Wet Weight82.0 kg (180.8 pounds)

Wheels & Brakes

Front Tire/Tyre120/90-10
Rear Tire/Tyre150/80-10
Front BrakesSingle disc
Front Brake Diameter180 mm (7.1 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels

Comments

It appears you're interested in specifications for the MBK Booster 50. This Scooter model is powered by a Single cylinder, two-stroke engine with 49.20 ccm (3.00 cubic inches) of actual displacement before 7.2:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 11.39 HP (8.3 kW) horsepower and 9.00 Nm (0.9 kgf-m or 6.6 ft.lbs) torque. According to our records engine heat of the MBK Booster 50 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/90-10 and the rear is 150/80-10 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The MBK Booster 50 was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
