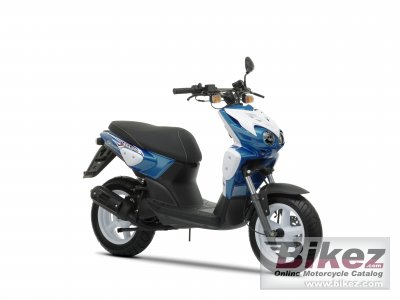

2009 MBK Stunt Naked Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 MBK Stunt Naked.

Basic Specs

Year2009
MakeMBK
ModelMBK Stunt Naked
Cost

Engine

Displacement49.90 ccm (3.04 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression11.2:1
Bore/Stroke40.0 x 39.2 mm (1.6 x 1.5 inches)
Valves/Cylinder
Fueling
IgnitionCDI
Exhaust
LubricationSeparate lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
Driveline

Performance

Horespower3.62 HP (2.6 kW)
Torque4.00 Nm (0.4 kgf-m or 3.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity5.50 litres (1.45 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel80 mm (3.1 inches)
Rear SuspensionUnit swing
Rear Travel60 mm (2.4 inches)
Seat
Seat Height787 mm (31.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,785 mm (70.3 inches)
Total Width711 mm (28.0 inches)
Ground Clearance155 mm (6.1 inches)
Wheelbase1,202 mm (47.3 inches)
Dry Weight267.0 kg (588.6 pounds)
Wet Weight82.0 kg (180.8 pounds)

Wheels & Brakes

Front Tire/Tyre120/80-12
Rear Tire/Tyre130/90-10
Front BrakesSingle disc
Front Brake Diameter190 mm (7.5 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels

Comments

It appears you're interested in specifications for the MBK Stunt Naked. This Scooter model is powered by a Single cylinder, two-stroke engine with 49.90 ccm (3.04 cubic inches) of actual displacement before 11.2:1 compression. Fueling is metered via allowing this machine to produce its 3.62 HP (2.6 kW) horsepower and 4.00 Nm (0.4 kgf-m or 3.0 ft.lbs) torque. According to our records engine heat of the MBK Stunt Naked is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/80-12 and the rear is 130/90-10 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The MBK Stunt Naked was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
