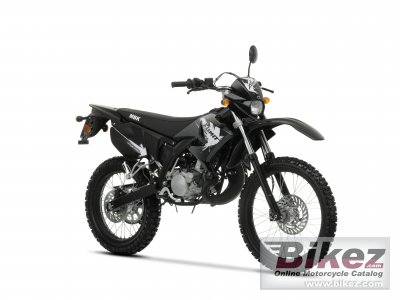

These are the known mechanical and performance specifications for your 2009 MBK X-Limit Enduro.
Basic Specs
Engine
Displacement49.70 ccm (3.03 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression12.0:1
Bore/Stroke40.3 x 39.0 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionC.D.I.
Exhaust
LubricationAutolube
CoolingLiquid
Performance
Horespower2.81 HP (2.1 kW)
Torque3.30 Nm (0.3 kgf-m or 2.4 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity6.00 litres (1.59 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel190 mm (7.5 inches)
Rear SuspensionHydraulic shock absorber
Rear Travel220 mm (8.7 inches)
Seat
Seat Height900 mm (35.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,160 mm (45.7 inches)
Total Length2,050 mm (80.7 inches)
Total Width850 mm (33.5 inches)
Ground Clearance347 mm (13.7 inches)
Wheelbase1,350 mm (53.1 inches)
Dry Weight114.2 kg (251.8 pounds)
Wet Weight98.0 kg (216.1 pounds)
Wheels & Brakes
Front Tire/Tyre80/90-21
Rear Tire/Tyre110/80-18
Front BrakesSingle disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
