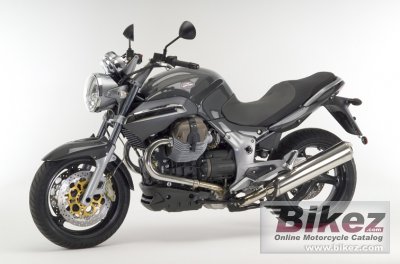

2009 Moto Guzzi Breva 1100 ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Moto Guzzi Breva 1100 ABS.

Basic Specs

Year2009
MakeMoto Guzzi
ModelMoto Guzzi Breva 1100 ABS
Cost

Engine

Displacement1064.00 ccm (64.93 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke92.0 x 80.0 mm (3.6 x 3.1 inches)
Valves/Cylinder
FuelingInjection. Weber-Marelli electronic fuel injection with stepper motor control
IgnitionInductive spark, digitally controlled, electronic twin spark ignition
ExhaustStainless steel, 2 in 1, with three ways catalyser and Lambda probe oxygen sensor
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower84.48 HP (61.7 kW)
Torque86.50 Nm (8.8 kgf-m or 63.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity23.00 litres (6.08 gallons)
Emissions

Chassis

Frame TypeDouble cradle, in high tensile strenght tubular steel
Rake
Trail120 mm (4.7 inches)
Front SuspensionTelescopic hydraulic fork with 45 mm, preload adjustable
Front Travel120 mm (4.7 inches)
Rear SuspensionSingle arm suspension progressive linkage, rear shock absorber adjustable in rebound ad pre-load (hydraulic).
Rear Travel120 mm (4.7 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,195 mm (86.4 inches)
Total Width870 mm (34.3 inches)
Ground Clearance190 mm (7.5 inches)
Wheelbase1,495 mm (58.9 inches)
Dry Weight232.0 kg (511.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesSingle disc. Two channels anti-block system
Front Brake Diameter282 mm (11.1 inches)
Rear BrakesSingle disc. Two channels anti-block system
Rear Brake Diameter282 mm (11.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Moto Guzzi Breva 1100 ABS. This Naked bike model is powered by a V2, four-stroke engine with 1064.00 ccm (64.93 cubic inches) of actual displacement before 9.8:1 compression. Fueling is metered via Injection. Weber-Marelli electronic fuel injection with stepper motor control allowing this machine to produce its 84.48 HP (61.7 kW) horsepower and 86.50 Nm (8.8 kgf-m or 63.8 ft.lbs) torque. According to our records engine heat of the Moto Guzzi Breva 1100 ABS is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Double cradle, in high tensile strenght tubular steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Two channels anti-block system front brakes and Single disc. Two channels anti-block system rear brakes. The Moto Guzzi Breva 1100 ABS was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
